SQL Sentry includes an interface for viewing, sorting, and filtering log and notes information.
The Actions Log is where information can be viewed relating to:
- General actions
- Failsafe actions
- Audit actions
- Advisory actions

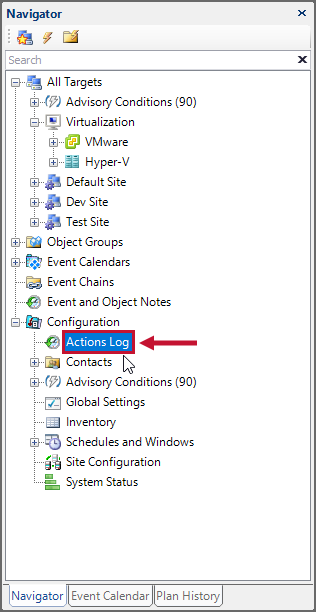

Select Actions Log in the Navigator pane to open the Log: Actions Log window.

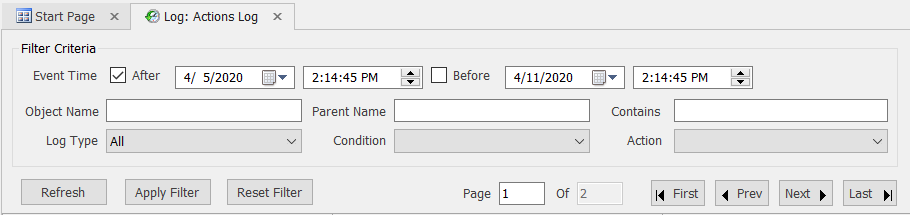

Filter Criteria manages results displayed in the Actions Log. Search for a specific log entry by narrowing the selection criteria to be displayed in the log list by using Filter Criteria.
|After||Enables the filter to only show logs with an event time after the specified time in the date/time selection controls.|
|Before||Enables the filter to only show logs with an event time before the specified time in the date/time selection controls.|
|Object Name||Filters the log list by applying a like comparison to the specified value to the value stored in the Object Name field.|
|Parent Name||Filters the log list by applying a like comparison to the specified value to the value stored in the Parent Name field.|
|Contains||Narrows the log list to the entries with the specified value in the message text.|
|Log Type||Specify the type of actions to display in the log list.|
|Conditions||Filters for a specific condition category.|
|Action||Filters for a specific action category.|
|Refresh||Used to refresh the list of logs and date/time filter.|
|Apply Filter||Used to apply Filter Criteria settings and refresh the log list.|
|Reset Filter||Used to remove the filter applied to the log list.|
|Page||Used to show the current display page of results and how many pages are in the log list.|
|First||Move to the first page of log results.|
|Previous||Move to the previous page of log results.|
|Next||Move to the next page of log results.|
|Last||Move to the last page of log results.|

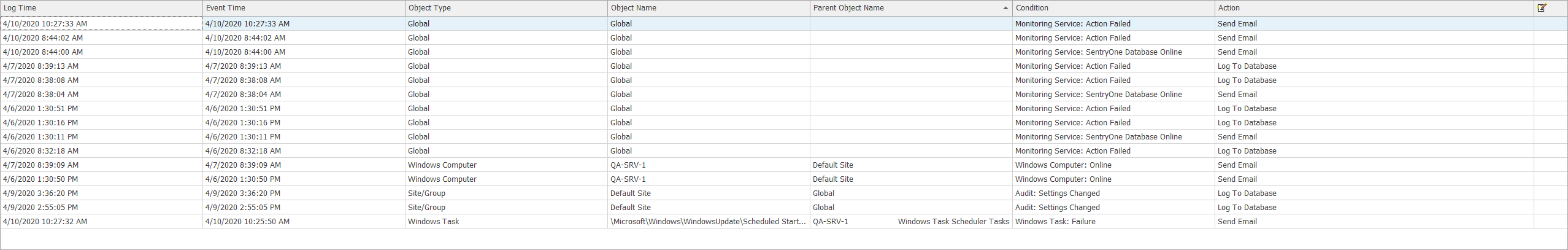

The log list shows all log records retrieved. To sort a list, select a header.
|Log Time||Displays the time the action was fired for the event.|
|Event Time||Displays the start time for the event.|
|Object Type||Displays the object type for the event.|
|Object Name||Contains the name of the object for the event.|
|Parent Object Name||Contains the name of the parent object for the event.|
|Condition||Captures the condition that caused the event.|
|Action||Captures the action that caused the event.|

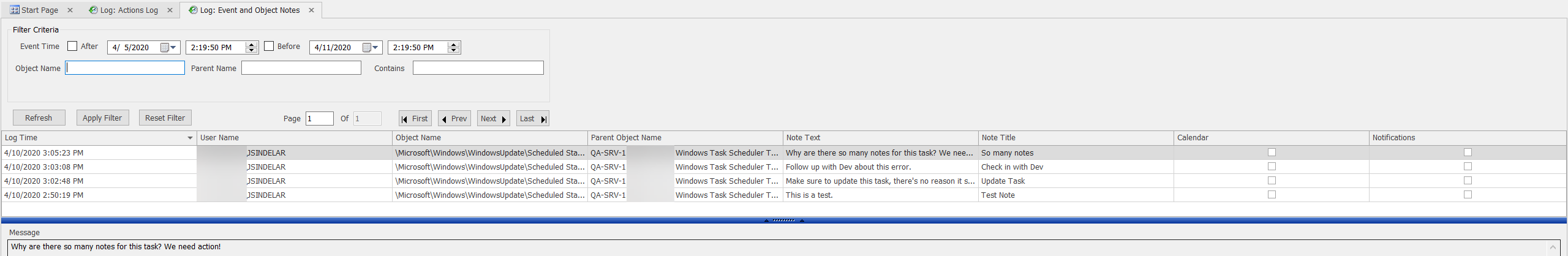

Even though notes are considered a logged object, the properties are somewhat different than the logs for other events. Thus, the log list columns vary in order to reflect these differences.
|Log Time||Date/time note is created.|
|User Name||Name of the user that created the note.|
|Object Name||The object name that the note references.|
|Parent Object Name||The name of the parent object that the note references.|
|Note Text||Contains the note message text.|
|Note Title||Contains the title or subject of the note.|
|Calendar||Captures the condition that caused the event.|
|Notifications||Captures the action that caused the event.|

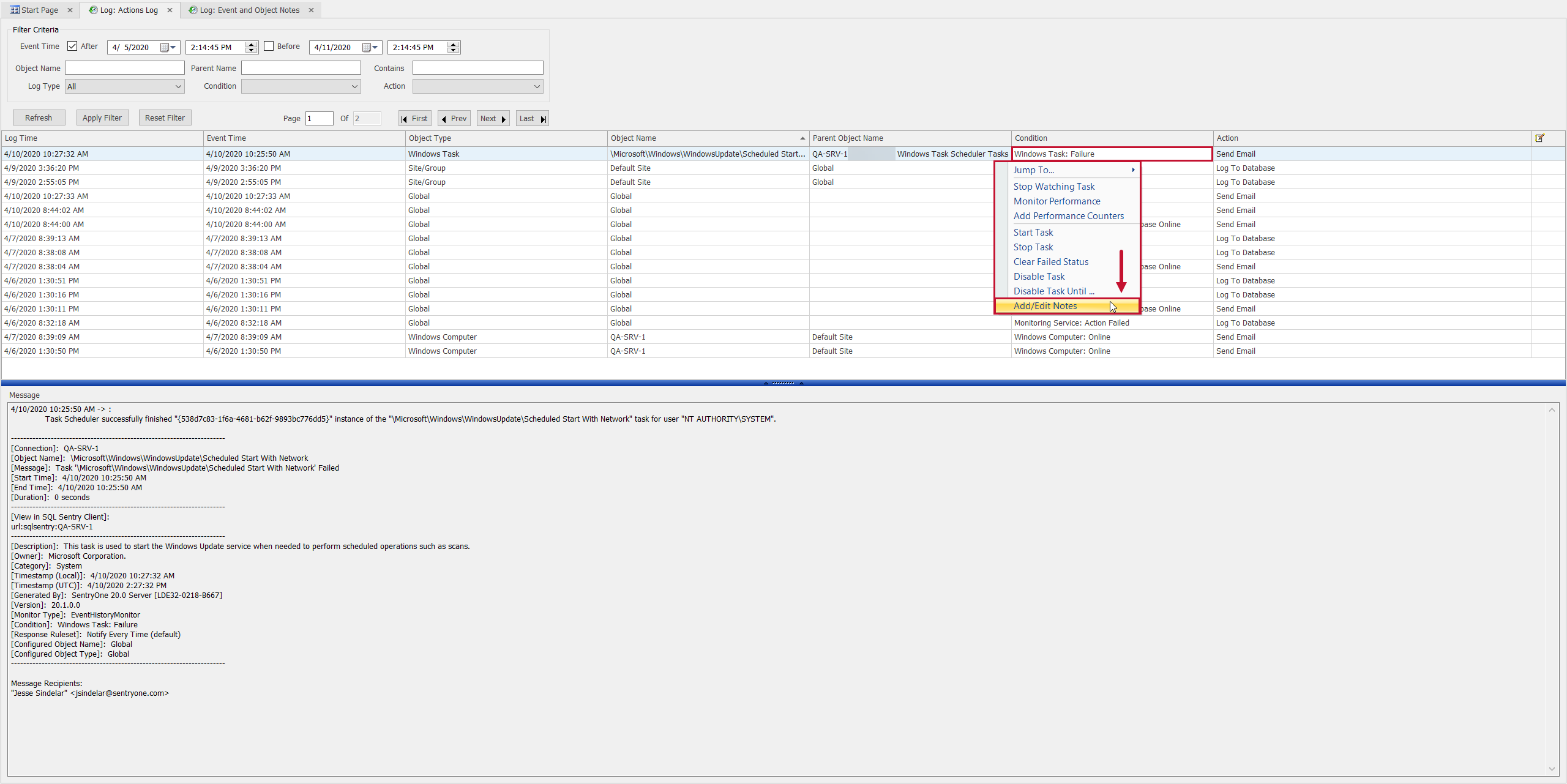

The Message window is located at the bottom portion of the view, and contains a read-only area, displaying the log messages. To add or edit notes to an event instance, right-click on the desired row in the list, and then select the option to Add/Edit Notes to open the note editor.
