Azure SQL DB Blocking SQL

Applies to: The Blocking tab is available for SQL Server, Azure SQL Database, and AWS RDS targets.

SQL Sentry Portal: This feature is available in SQL Sentry Portal. To learn more about configuring your environment to use the on-premises, browser-based option with your existing SQL Sentry database, see the SQL Sentry Portal article.

See the SQL Sentry Portal Blocking article for an example of the Blocking feature in a browser.

Overview

The Blocking SQL tab displays all SQL Server blocks that occurred during the active date range that meet the Minimum Block Duration. Each block is displayed in a hierarchical format, showing the relationships between all blocking and blocked SPIDs in a blocking chain.

Blocking SQL Collection

Blocking SQL collection is controlled with the Blocking SQL Source settings. The Minimum Block Duration setting determines how long a block exists before information is collected on it. The default setting is 15 seconds. Adjust Blocking Collection as desired through the Settings pane (View >Settings).

Example One

Change blocking collection to 20 seconds globally by completing the following steps:

Select the All Targets (globally) node in the Navigator pane (View > Navigator).
In the Settings pane (View > Settings), select SQL Server from the top drop-down list.
Select Blocking SQL Source from the second drop-down list to show Blocking Source settings that are being applied globally.
Change the Minimum Block Duration setting to 20 seconds, and then select Ok; it's saved automatically.

Example Two

Change the blocking collection for an individual instance by completing the following steps:

Select the desired instance node in the Navigator pane (View > Navigator).
In the Settings pane, select Blocking SQL Source from the second drop-down list to see the Blocking SQL Source settings that are configured for the instance.
Change the Inherit From Parent setting to False.
Change the Minimum Block Duration setting to your desired value; it's saved automatically.

Query Collection Maximum Text Length

By default, SQL text data length for captured events is limited to 10,000 characters. Change this maximum length in the Monitoring Service Settings (Navigator pane > Configuration > Global Settings > Monitoring Service Settings > Advanced tab> Query Collection Maximum Text Length).

SQL Sentry Monitoring Service Settings Advanced tab Query Collection Maximum Text Length setting

Blocking SQL Retention

By default, Performance Analysis Blocking SQL, Top SQL, and Deadlock data is retained for 15 days. This is controlled with the Keep Performance History For setting found on the Storage tab of Global Settings (Navigator pane > Configuration >Global Settings > Storage tab). For more information about retention, see the Data Capacity Planning topic.

SQL Sentry Monitoring Service Settings Storage tab Keep Event History For setting

Blocking SQL Alerting

Configure actions in response to Blocking SQL conditions. The SQL Server: Blocking SQL condition occurs each time a block is collected, and therefore has a direct correlation to the Blocking SQL Source Collection settings. Configure an action in response to the SQL Server: Blocking SQL: Output Content Match (OCM) condition. The OCM condition is useful in narrowing the notifications you see concerning blocking.

Actions Selector SQL Server: Blocking SQL: Output Content Match

Note: Consider applying a Response Ruleset to any action you configure with the SQL Server: Blocking SQL condition. Response Rulesets control how often actions are taken in response to conditions. In this case, apply a Response Ruleset to limit the Blocking alerts you receive, while still retaining Blocking information on the Blocking SQL tab.

Display/Controls

Toolbar

The Blocking SQL tab has two modes: Real Time and History. Use the toolbar options to switch between these modes.

SQL Sentry toolbar

Real Time

When the auto-refresh Play button is selected, the tab enters Real Time mode. In Real Time mode, any blocking SQL that happened within the last 10 minutes displays.

SQL Sentry Blocking SQL tab Real-time mode

History

When the auto-refresh Pause button is selected, the tab goes into History mode. Select a time range, then select Go on the toolbar to view blocks that happened during the specified time range.

Blocking SQL tab History mode

If you want to go directly to the most recent block, use the Jump To Last Block button.

Blocking SQL tab Jump To Last Block button

Filter

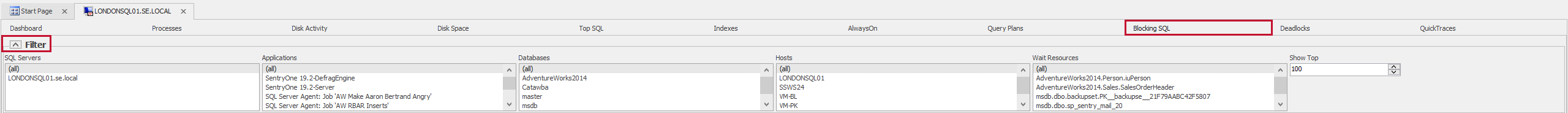

The top pane provides client filters for specifying which records to display for the defined interval. Blocking SQL tab Filter

Note: The Filter pane is for client side filtering only and doesn't impact what's collected. For more information, see the Blocking SQL Collection section.

After changing any of the filters, it's necessary to select Refresh, or press F5, to apply the filter. To select more than one item in a list, use Shift-Click or CTRL-Click. The following are available filters:

Filter	Image
SQL Servers
Applications
Databases
Hosts
Wait Resources
Show Top

Blocking SQL Grid View

Each block displays in a hierarchical format, showing the relationships between all blocking and blocked SPIDs in a blocking chain.

Blocking SQL tab Blocking SQL Gridview

The head of the blocking chain is the top node in the hierarchy which contains the blocking statement, and displays with an orange node if the statement is still running, and a green node once it's completed.

SQL Sentry Blocking SQL tab Head Spid Completed

Sub-nodes in the chain are the statements that are being blocked, and they display with a red node. Any subsequent statements that are being blocked are nested underneath, giving you a complete picture of the blocking chain.

Blocking SQL tab subsequent block example

A unique record is shown for each version of a blocking chain, denoted by the Version column. A new record is created every time the blocking chain changes, meaning that a blocked SPID is either added or removed from the chain between polling intervals.

Note: For some blocks, this may happen frequently, causing multiple records to be created, while others may not change at all for the duration of the block.

Note: Indentations between SPIDs of the same color in the blocking chain indicate that the queries in the chain are being blocked by the currently blocked query.

Color Code	Description
Green	The head of the blocking chain is the top node in the hierarchy which contains the blocking statement and displays with a green node once it's completed.
Orange	The head of the blocking chain is the top node in the hierarchy which contains the blocking statement and displays with an orange node if the statement is still running.
Red	When sub-nodes in the chain are the statements that are being blocked they display with a red node.

The polling interval for blocks is determined by the Live Event Monitor Polling Interval (Navigator pane > Configuration > Global Settings > Monitoring Service Settings > Advanced tab).

Text Data

The bottom pane shows the T-SQL Text Data for the currently highlighted Blocking SQL record.

Blocking SQL tab Text Data

Note: For some SPIDs the bottom pane may be blank if SQL Sentry is unable to collect the TSQL due to timing issues.

Additional Options

The following are additional options available through the right-click context menu:

Context Menu Option	Description
Jump to Calendar	Opens the selected event on the Event Calendar (requires server to be watched with EM).
Jump to Dashboard	Opens the Performance Analysis Dashboard with the selected blocking event overlaid on each of the charts.
Jump to Top SQL	Opens the Top SQL tab highlighting the query involved in the blocking event.
Right-clicking on a blocking record	Presents a context menu that allows you to Jump To the instance on the calendar or kill the process associated with the blocking event.
Clear Sorting command	Removes any grid orderings.

Additional context menu options include the ability to expand and collapse individual trees or all the records in the Grid view.

Blocking SQL Metrics

Name	Description
SPID [ecid]	The session process ID of the associated blocked/blocking process.
Version	A unique record is shown for each version of a blocking chain, denoted by the Version column. A new record is created each time the blocking chain changes, meaning that a blocked SPID is either added or removed from the chain between polling intervals. For some blocks this may happen frequently, creating multiple records, while others may not change at all for the duration of the block. Note: The Polling Interval for blocks is determined by the Event Monitor Polling Interval (Navigator pane > Configuration > Global Settings > Monitoring Service Settings > Advanced tab).
SQL Server	Name of the SQL Server hosting the SPID.
Start Time	Start time of the request.
Duration	The length of time that the block exists.
Plan	Opens a Plan Explorer session for the associated query plan.
Statement	The command text associated with the request.
Object	The object associated with the request.
Wait Time	Duration of wait time in milliseconds.
Wait Type	Name of the wait type. For more information about wait types, see the sys.dm_os_wait_stats (Transact-SQL) MSDN article.
Wait Resource	Name of the resource on which the request is currently waiting.
Host	The client workstation specific to this session.
Application	The associated application.
Database	The associated database.
Login	The login name associated with the session.
Last Batch	The last time a parent process involved in blocking completed a successful batch execution. Note: This SPID metric can be useful if you have one that remains open and sends various batches. For example, if you are looking at SPIDs that are currently running, and see a SPID in a sleeping state, then you can see that the last batch execution was two hours ago.
Host Process ID	The process ID of the client program which initiated the session.
