SSAS Top Commands



Introduction

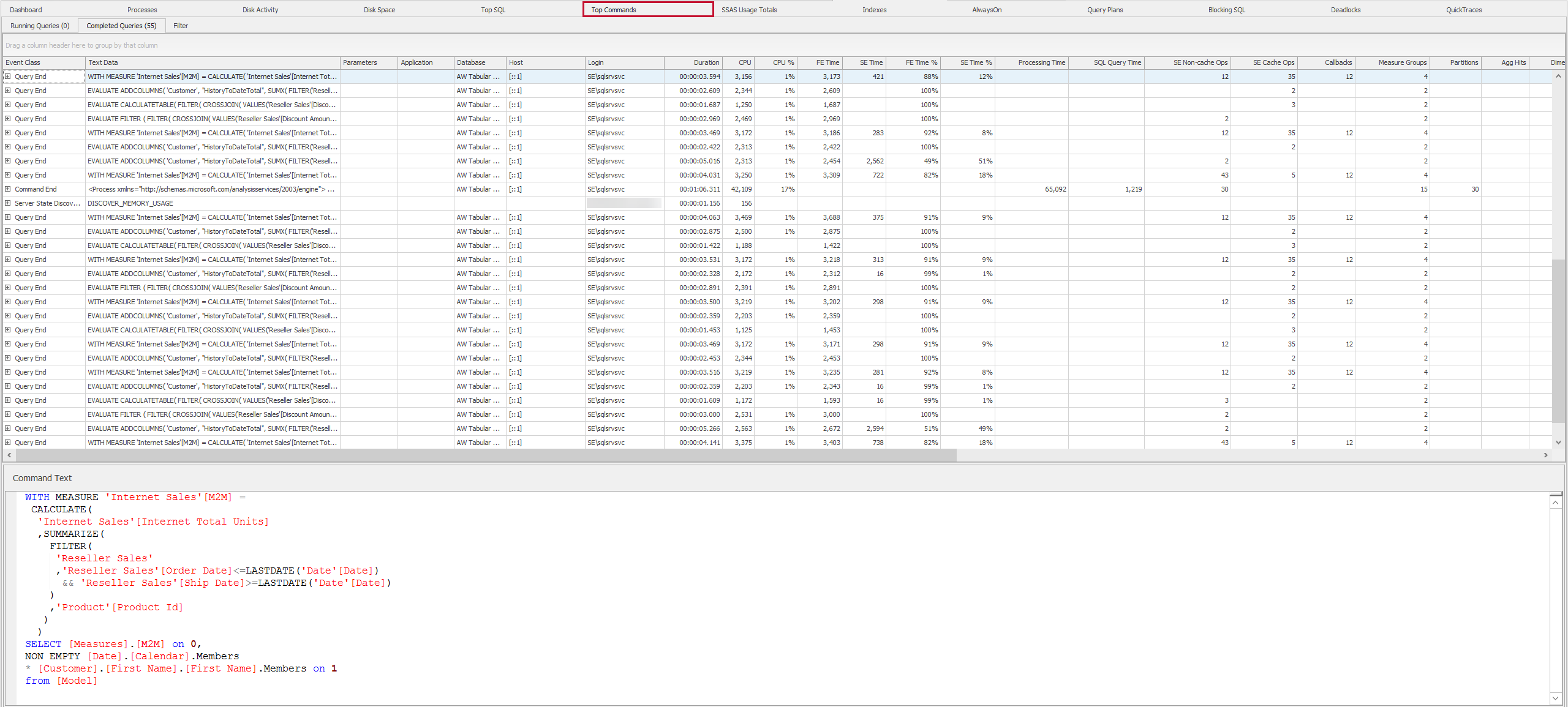

The Top Commands tab shows Analysis Services query level collection and any MDX, DAX, DMX, and XMLA commands that have run longer than one second. All of the like queries have been rolled up and grouped together so you can see their total impact. Drill down to see individual queries and group by event class to do discovery on the grid data.

Columns	Descriptions
Event Class	The event class of the associated event. Additional Information: For more information, see the SQL Server Event Class Reference MSDN article.
Text Data	Associated text data captured for the event.
Parameters	Contains the parameters for parameterized queries and commands associated with the query event.
Application	Name of the client application that created the connection.
Database	Name of the database for the associated event.
Host	Name of the target where the associated event is running.
Login	The Windows or SQL Server account associated with the event.
Duration	The amount of time taken by the associated event.
CPU	The amount of CPU time (in milliseconds) used by the event.
CPU %	The percentage of CPU time used by this event, in relation to any other Top Commands events that are shown in the grid.
FE Time	Time spent by workload on the Formula Engine.
SE Time	Time spent by workload on the Storage Engine.
Processing Time	Time spent by workload processing.
SQL Query Time	Time spent by workload in SQL queries.
SE Non-cache Ops	Number of Non-cache Storage Engine operations.
SE Cache Ops	Number of Cache Storage Engine operations.
Callbacks	Applies to Tabular mode only. Provides the number of callbacks from the VertiPaq Storage Engine to the Formula Engine associated with the query.
Measure Groups	Provides a count of the number of Measure Groups accessed by the query or command.
Partitions	Provides a count of the number of Partitions accessed by the query or command.
Agg Hits	Applies to Multidimensional mode only. Provides a count of the number of Aggregations accessed by the query.
Dimensions	Provides the dimensions of the query hierarchy.
Attributes	Provides a count of the number of Attributes accessed by the query.
Rows Sent	Provides a count of the number of rows returned by the query.
Processing Rows	Provides a count of the number of rows processed by the command.
Errors	Error number of a given event.
Error Text	Contains the text data associated with the error event.
Reads	The number of logical disk reads performed by the server on behalf of the event.
Reads %	The percentage of bytes read by this event, in relation to any other events that are shown in the Top Commands tab.
Writes	The number of physical disk writes performed by the server on behalf of the event.
Writes %	The percentage of bytes written by this event, in relation to any other events that are shown in the Top Commands tab.
Start Time	Time the event started.
End Time	Time the event ended.
Information	Additional data captured about the event.

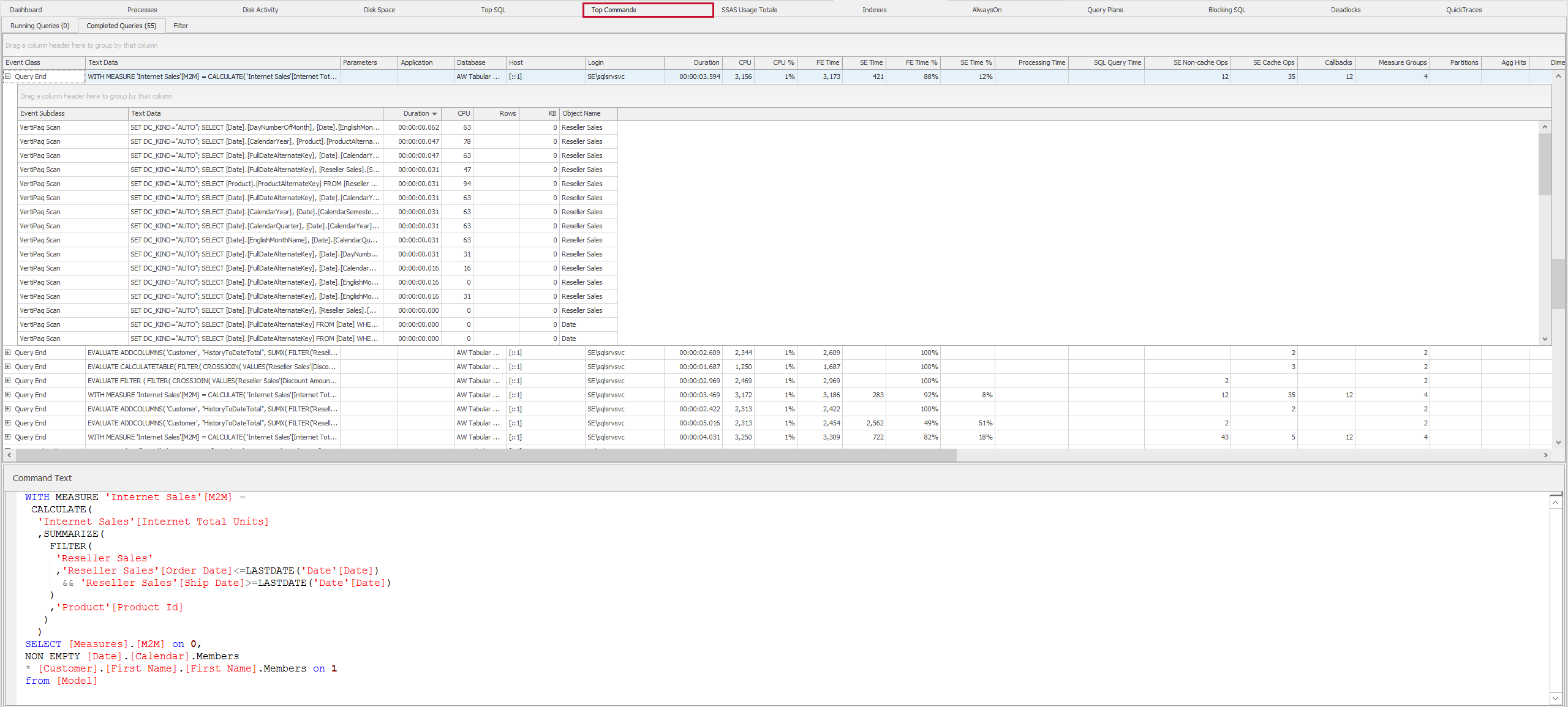

Right-click on any query, and Jump To the dashboard. You can also Jump To > Calendar to see what else is running at the same time, or Jump To > Runtime Stats to see if there are any outliers on runtime.
