SQL Sentry Portal Storage
Storage

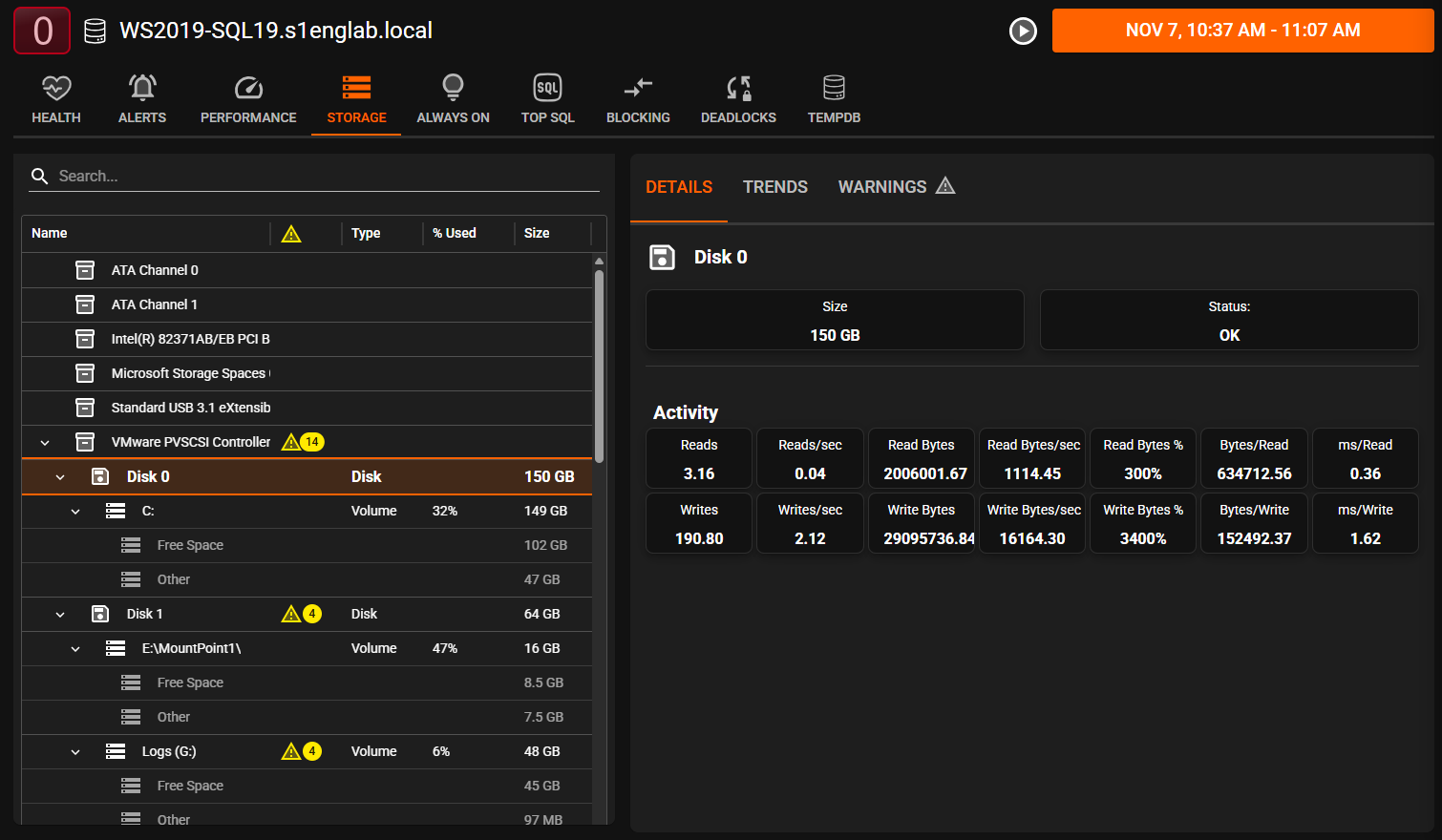

The Storage view provides details about the disk space and disk activity in your monitored environment. Use the Storage tab to view details about your monitored environment storage by disk, including capacity, free space, databases, disk activity, etc.
View data about your monitored environment's disk activity and disk space. Selecting a link from the table on the left populates details for your selection on the right in the Details and Trends tabs.

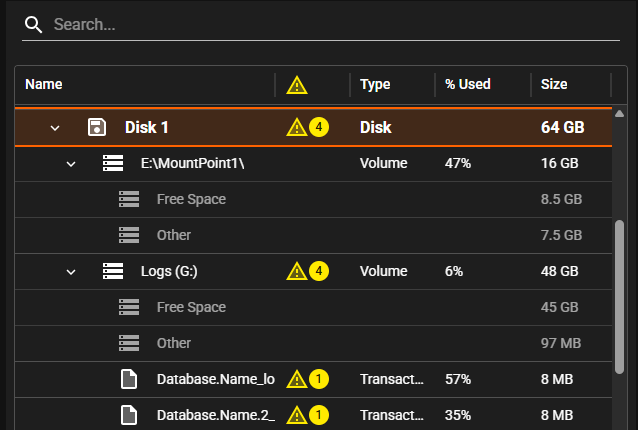

Overview Chart
The Overview chart displays storage capacity information for your monitored environment.
| Option | Description |
|---|---|
| Name | The name of your monitored storage unit. |
| Type | The type of storage unit (Disk , Volume, Transaction Log, Data, etc). |
| % Used | The percentage of used space for the storage unit. |
| Size | The overall size of the Storage unit in MB or GB. |

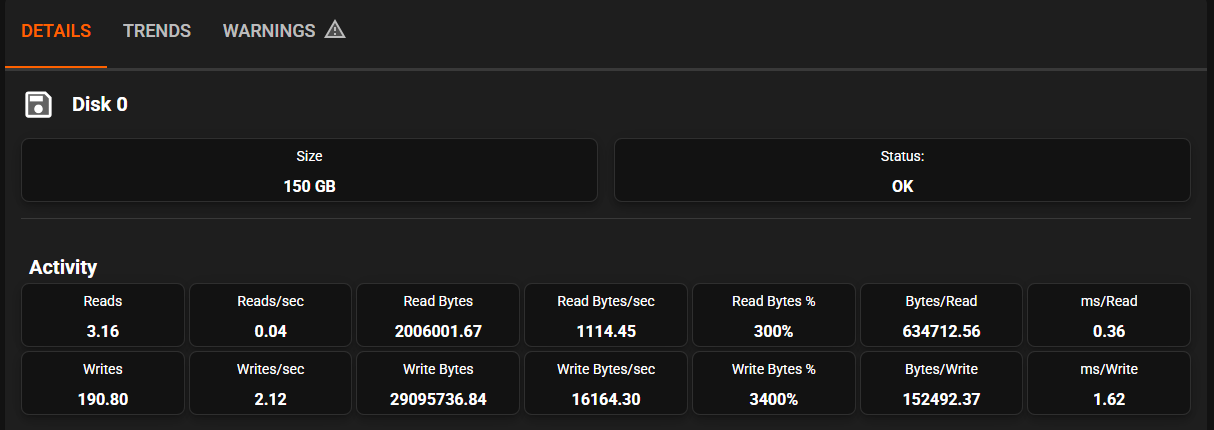

Details
The Details tab displays recorded storage metrics and any storage activity for your monitored environment. The details tab is divided into Capacity and Activity Metrics sections that display real-time data or a selected range of data.
Capacity Metrics
| Metric | Description |
|---|---|
| Size | The overall size of the selected Storage unit in MB or GB. |
| % Used | The percentage of used space for the selected storage unit. |
| File Group | The file group that the storage unit is associated with. |
| Database | The database for the selected storage unit. |
| File Path | The file path for the selected storage unit. |
| Active VLFs | The number of active virtual log files for the selected storage unit. |
| Autogrowth | The percentage of autogrowth and amount of autogrowth memory in (KB), or (MB). |
| Autogrowth VLF Count | The number of virtual log files that have used autogrowth for the selected storage unit. |
| Autogrowth VLF Size | The size in (KB) or (MB) of the autogrowth VLF(s). |
| Last Backup Time | The time in UTC that the selected storage unit was last backed up. |
| Last Backup Type | The type of backup performed during the last backup period. |
| Log Reuse Wait | The status of the transaction log for the monitored connection. Additional Information: For more information about the Transaction Log in SQL Server and possible statuses, see the Transaction Log (SQL Server) MSDB article. |
| Max File Size | The maximum file size for the selected storage unit. |
| Max VLF Size | The maximum virtual log file size for the selected storage unit. |
| Min VLF Size | The minimum virtual log file size for the selected storage unit. |
| Total VLFs | The total number of virtual log files for the selected storage unit. |
| Used Space | The total amount of consumed space for the selected storage unit. |
Activity Metrics
| Metric | Description |
|---|---|
| Reads | The number of reads in your selected storage unit for the specified time period. |
| Reads/sec | The number of reads per second in your selected storage unit for the specified time period. |
| Read Bytes | The total number of read bytes in your selected storage unit for the specified time period. |
| Read Bytes/sec | The total number of read bytes per second in your selected storage unit for the specified time period. |
| Read Bytes % | The total percentage of read bytes in your selected storage unit for the specified time period. |
| Bytes/Read | The number of bytes per read in your selected storage unit for the specified time period. |
| Writes | The number of writes in your selected storage unit for the specified time period. |
| Writes/sec | The number of writes per second in your selected storage unit for the specified time period. |
| Write Bytes | The total number of write bytes in your selected storage unit for the specified time period. |
| Write Bytes/sec | The total number of write bytes per second in your selected storage unit for the specified time period. |
| Write Bytes % | The total percentage of write bytes in your selected storage unit for the specified time period. |
| Bytes/Write | The number of bytes per write in your selected storage unit for the specified time period. |

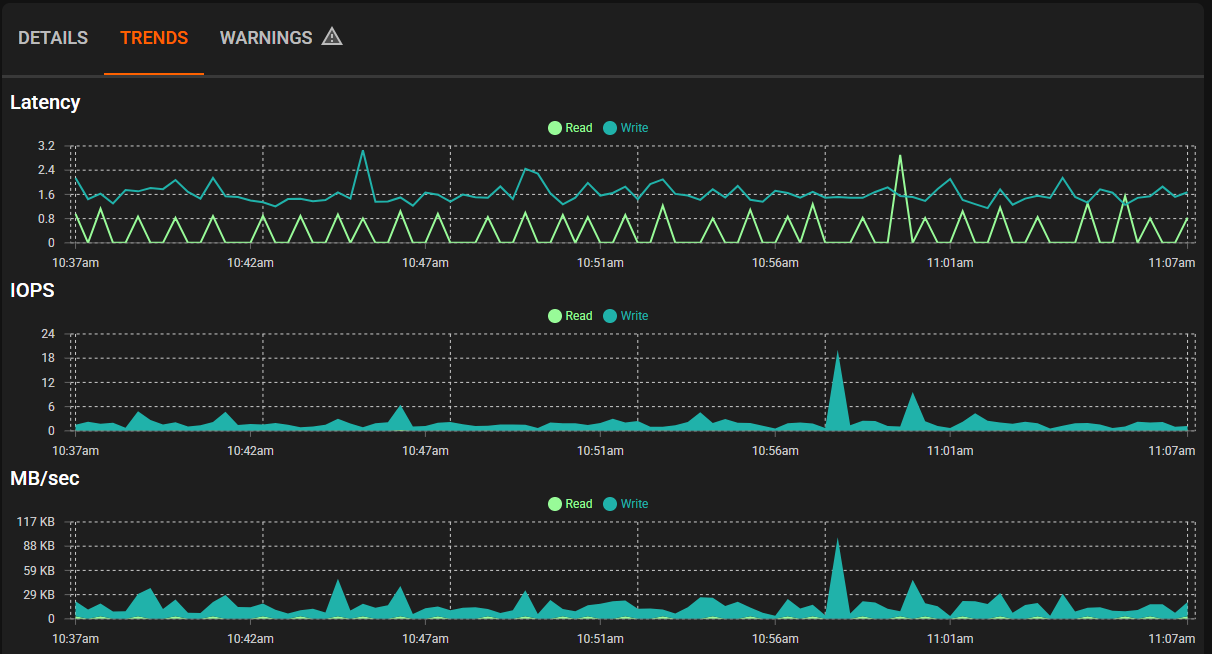

Trends
The Trends tab displays Latency, IOPS, and MB/sec graphs for your selected storage unit.
Select a spike on a trends graph to display detailed read and write tooltips for your selection.
View storage trends historically for your selection. Select the calendar, and then select the desired Range, Days, Weeks, or Months that you want to display. Select Apply to update the trends graphs based on your selection.
Select a graph metric to remove that data from the graph.

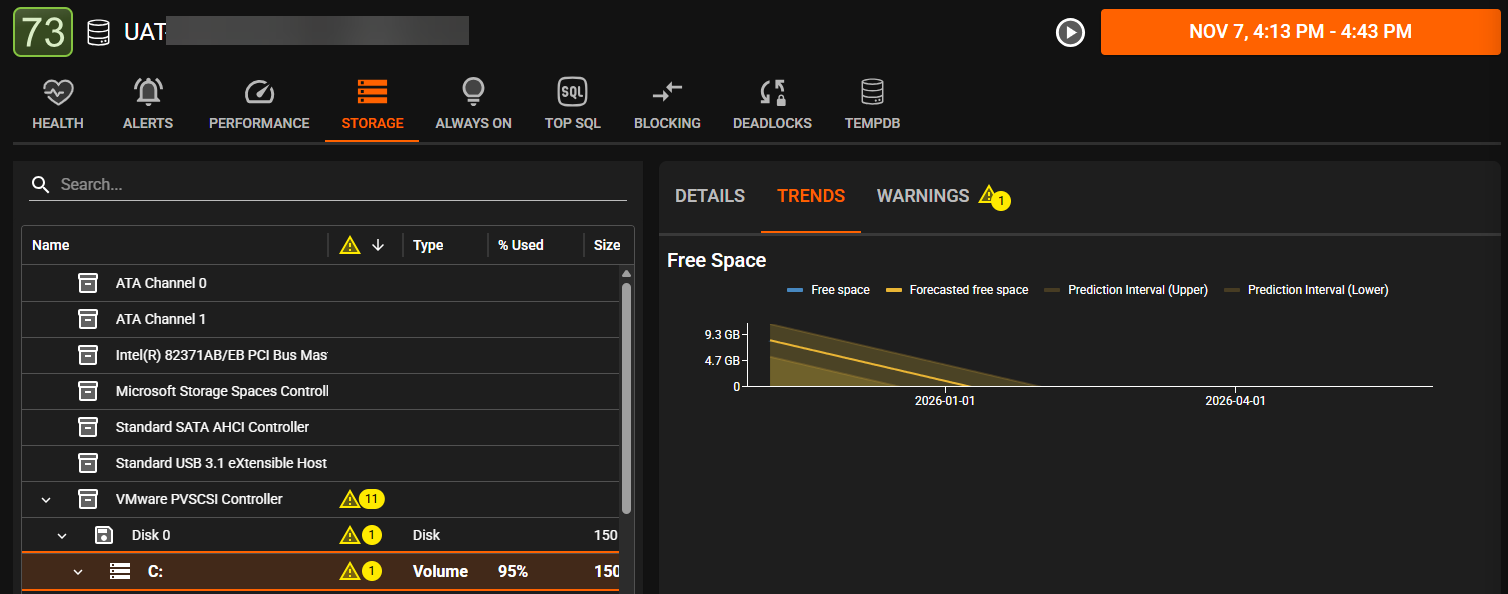

Select a Disk Volume to display a disk space forecast for the selection.

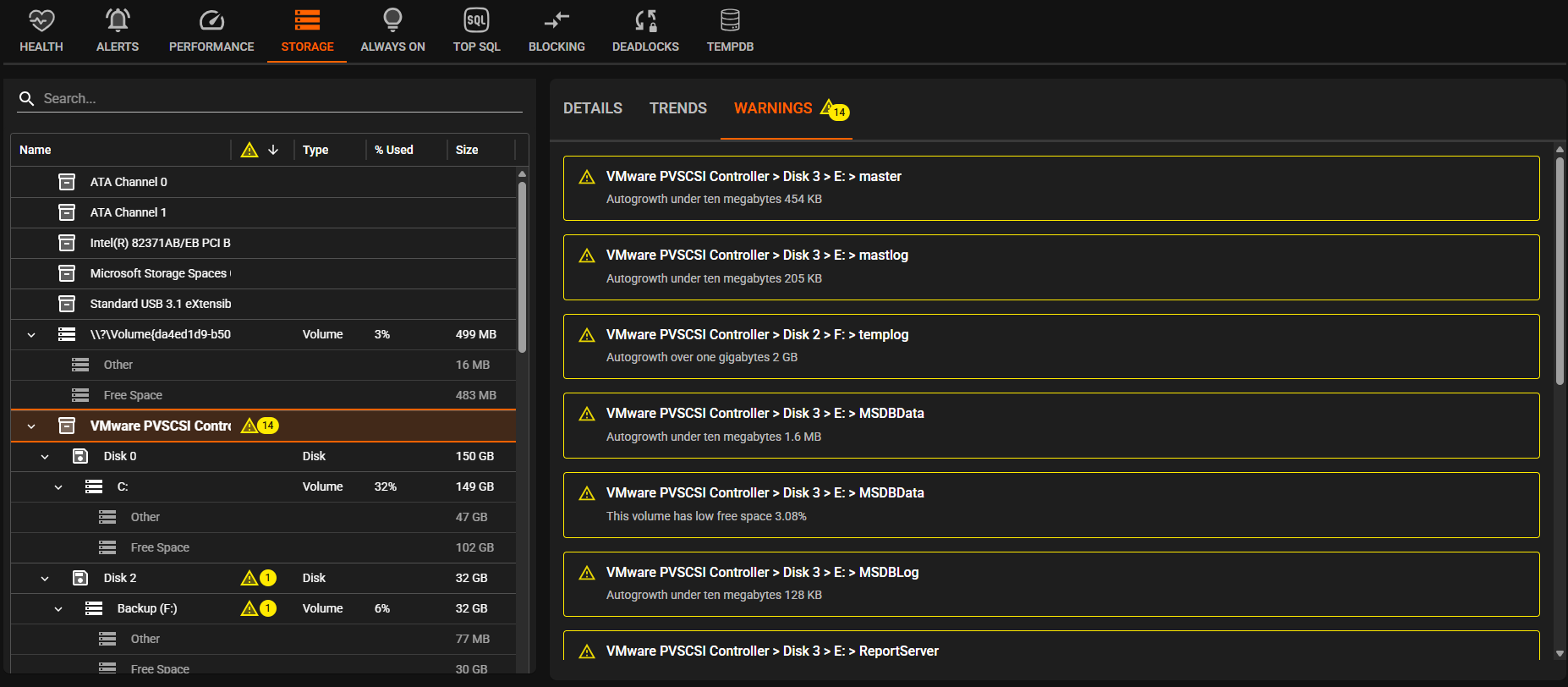

Warnings
SQL Sentry Portal tracks multiple warnings types across the storage entities in your monitored environment. Warnings display as red ! icons and are visible on the Overview chart. Select a storage entity with a warning icon to display more information about the warning in the Details tab.
If you select an individual disk, the Details tab will display the warnings associated to the selected disk.
Select the ! on the column bar to sort by warnings.
Select a Storage Warning link to be redirected to the selection.
SQL Sentry Portal will notify you if your environment encounters any of the following warnings:
| Warning | Description |
|---|---|
| TotalVlfsOver100 (vlfs = virtual log files) |
Total VLFs over 100. Too many VLFs can cause long startup and backup times. |
| TotalVlfsOver300 (vlfs = virtual log files | Total VLFs over 300. Too many VLFs can cause long startup and backup times. |
| AutogrowthUnderTenMegabytes | Autogrowth under ten megabytes. |
| AutogrowthOverOneGigabyte | Autogrowth over one gigabyte. |
| AutogrowthOverRemainingDiskSpace | Autogrowth over remaining disk space. |
| NonSimpleRecoveryModelAndNotBackedUp | This database is in a non-simple recovery model and is not backed up. |
| ForecastExhaustionWithinThirtyDays | The forecasted exhaustion of this volume is within 30 days. |
| LowFreeSpacePercentage (Free space < 10%) | This volume has low free space. |
