Metrics
The following content pertains to metrics for the legacy AppOptics agents.
AppOptics agents are no long receiving updates. The new SolarWinds Observability libraries can send APM data in AppOptics and are regularly updated with new features and improvements. If you are still relying on the AppOptics agents and your components are supported by the new libraries, consider transitioning to the SolarWinds Observability libraries for your APM needs. Alternatively, you can use SolarWinds Observability as your primary APM solution.
If you have already transitioned to the new SolarWinds Observability libraries, see the SolarWinds Observability APM Services documentation for metrics information.
SolarWinds Observability libraries are not compatible with AppOptics agents. Do not use a mix of SolarWinds Observability libraries and AppOptics agents to instrument applications that are part of a distributed trace.
Once installed and enabled, the APM agents automatically start reporting key performance metrics about your application. These standard metrics are collected for all requests and include response time and error rate for the service as a whole, or for a particular transaction. AppOptics also provides a set of trace-derived metrics for various types of outbound calls made by your application, such as response time for database calls that can be filtered by database host or query operation. These trace-derived metrics are based on a sampled subset of requests to a service. In addition, several of the agents report language-specific runtime metrics about the execution environment of your application.
Standard Metrics
The tables below list the default set of metrics collected by the APM agent for all requests, as well as the tags available to the standard metrics. Counts are reported every minute.
| Metric | Description | Available Tags |
|---|---|---|
| trace.service.errors | Service error count | service |
| trace.service.error_rate | Service error rate (%) | service |
| trace.service.host.errors | Host error count | service,status |
| trace.service.host.requests | Host request count | service,status |
| trace.service.host.response_time | Host response time | service,status |
| trace.service.hosts.count | Service host count | service |
| trace.service.http_method.requests | Service HTTP method count | service,method |
| trace.service.http_method.response_time | Service response time by HTTP method | service,method |
| trace.service.http_status.requests | Service HTTP status count | service,status |
| trace.service.http_status.response_time | Service response time by HTTP method | service,status |
| trace.service.requests | Service request count | service |
| trace.service.response_time | Service average response time | service |
| trace.service.response_time.p50 | Service response time of the top 50% | service |
| trace.service.response_time.p95 | Service response time of the top 95% | service |
| trace.service.response_time.p99 | Service response time of the top 99% | service |
| trace.service.response_time.p999 | Service response time of the top 99.9% | service |
| trace.service.samplecount | count of sampled requests | service,host_type |
| trace.service.tracecount | count of traces generated from requests | service,host_type |
| trace.service.transaction.errors | Transaction error count | service,transaction |
| trace.service.transaction.http_method.requests | Transaction HTTP method count | service,transaction,method |
| trace.service.transaction.http_status.requests | Transaction HTTP status count | service,transaction,status |
| trace.service.transaction.requests | Transaction request count | service,transaction |
| trace.service.transaction.response_time | Transaction average response time | service,transaction |
| trace.service.transaction.response_time.p50 | Transaction response time of the top 50% | service,transaction |
| trace.service.transaction.response_time.p95 | Transaction response time of the top 95% | service,transaction |
| trace.service.transaction.response_time.p99 | Transaction response time of the top 99% | service,transaction |
Tags
Sampled Trace-Derived Metrics
Trace-derived metrics are additional metrics pulled from the traces gathered by the APM agent. These metrics are gathered using adaptive sampling; in low-traffic environments every request will be traced but in high-traffic environments a sampled subset of requests will be used. Unlike the standard metrics above, these are not guaranteed to reflect all activity in your applications. See Transaction Trace Sampling for more information.
When viewing data in AppOptics, filter by a service to show a sampled metric's data. If you do not filter by a service when viewing sampled trace-derived metrics, no data will be displayed.
Database Metrics
All database metric tags are available to these database metrics.
| Metric | Description |
|---|---|
| trace.service.outbound_calls.database.query.response_time_per_trace | Service database query average response time per trace |
| trace.service.outbound_calls.database.query.response_time | Service database query average response time |
| trace.service.outbound_calls.database.query.count_per_trace | Service database query average count per trace |
Database Metric Tags
| Tag Name | Description |
|---|---|
| service | Name of the service |
| transaction | Name of the transaction |
| database | Name of the database |
| database_host | The Database Host |
| query_op | Query operation |
| query_table | Database Table |
Cache Metrics
All cache metric tags are available to these cache metrics.
| Metric | Description |
|---|---|
| trace.service.outbound_calls.cache.op.response_time_per_trace | Service cache op average response time per trace |
| trace.service.outbound_calls.cache.op.response_time | Service cache op query average response time |
| trace.service.outbound_calls.cache.op.count_per_trace | Service cache op average count per trace |
| trace.service.outbound_calls.cache.op.hit_rate | Servce cache op average hit rate |
Cache Metric Tags
| Tag Name | Description |
|---|---|
| service | Name of the service |
| cache | Name of the cache |
| cache_host | The Cache Host |
| cache_op | Cache operation |
Remote Service Metrics
All remote service metric tags are available to these remote service metrics.
| Metric | Description |
|---|---|
| trace.service.outbound_calls.remote_service.call.response_time_per_trace | Service remote call average response time per trace |
| trace.service.outbound_calls.remote_service.call.response_time | Service remote call query average response time |
| trace.service.outbound_calls.remote_service.call.count_per_trace | Service remote call average count per trace |
Remote Service Metric Tags
| Tag Name | Description |
|---|---|
| service | Name of the service |
| remote_service | Name of the remote service |
| remote_service_type | Remotes service type |
| remote_service_op | Remote service operation |
Exception Metrics
| Metric | Description |
|---|---|
| trace.service.exceptions.count | Service exceptions count |
Exception Metric Tags
| Tag Name | Description |
|---|---|
| service | Name of the service |
| transaction | Name of the transaction |
| exception_class | Name of the Exception Class |
| exception_class_message_hash | A hash of the message |
| exception_class_message_backtrace_hash | A hash of the backtrace |
Other Sampled Metrics
| Metric | Description |
|---|---|
| trace.service.critical_path.response_time_per_trace | Service critical path average response time |
Other Sampled Metric Tags
| Tag Name | Description |
|---|---|
| service | Name of the service |
| host | Name of the host |
| transaction | Name of the transaction |
| layer_name | Name of the Layer |
| layer_type | The type of Layer |
Runtime Metrics
Many of our agents also report language-specific runtime metrics, to provide you insight and monitoring on memory, CPU and other statistics about your application's execution environment. An example is using the JMX metrics reported by the Java agent to correlate between application performance and JVM metrics such as garbage collection, heap size, and thread count.

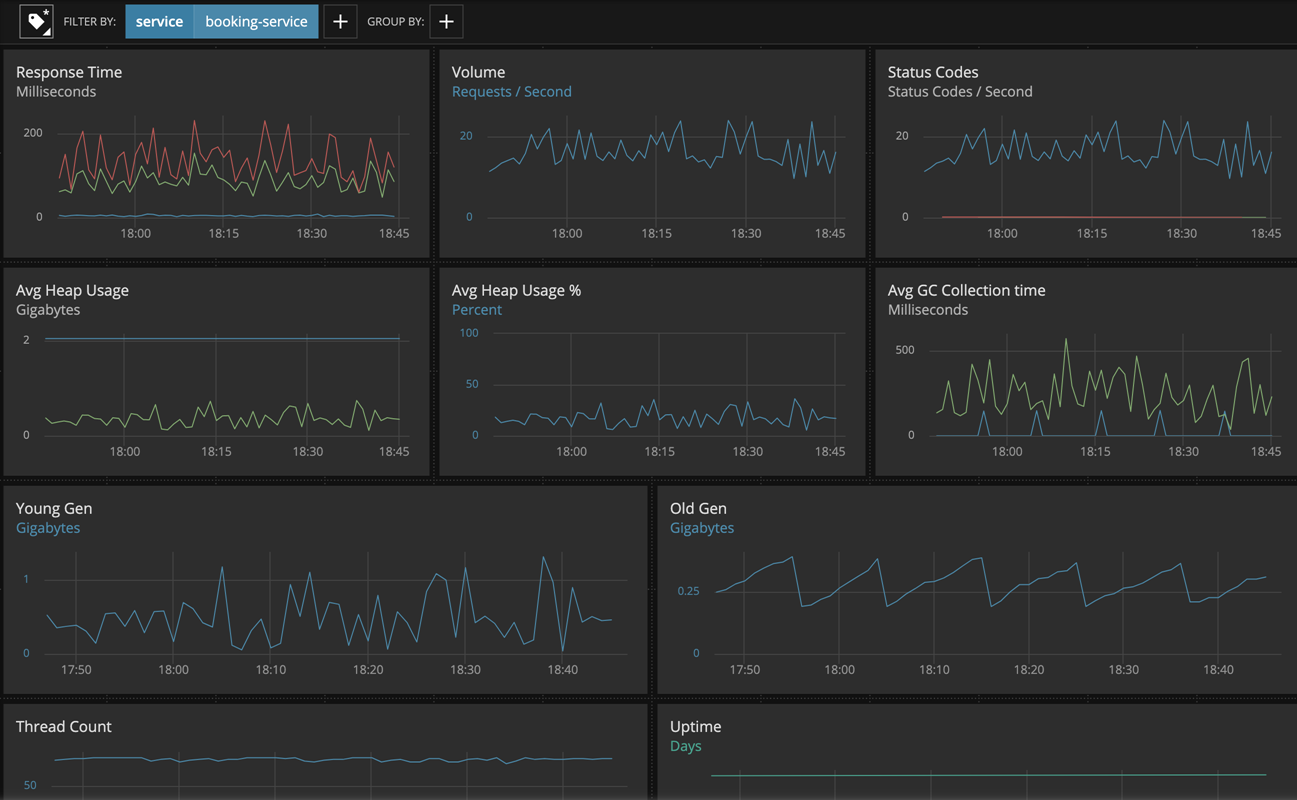

The agents report runtime metrics out-of-the-box; on detecting these metrics, AppOptics automatically creates a pre-configured dashboard in your account to help you easily monitor key metrics right away:
These runtime metrics are also available throughout the AppOptics system for you to use in custom charts and dashboards and alerts.
See the links below on the metrics for each language runtime and agent-specific configuration:
- Go (agent version 1.13.0 and up)
- Java (agent version 6.0.0 and up)
- Node.js (agent version 7.1.0 and up)
Runtime Metric Tags
Runtime metrics, regardless of agent, will have the following tags:
| Tag Name | Description |
|---|---|
| hostname | Name of the host |
| service | Name of the service |
