Area overviews

Area overviews are non-customizable dashboards, based on a monitoring area. The data in the widgets cover all entities being monitored. You can access area overviews for individual monitoring areas in the left pane of the SolarWinds Observability application.

DEM

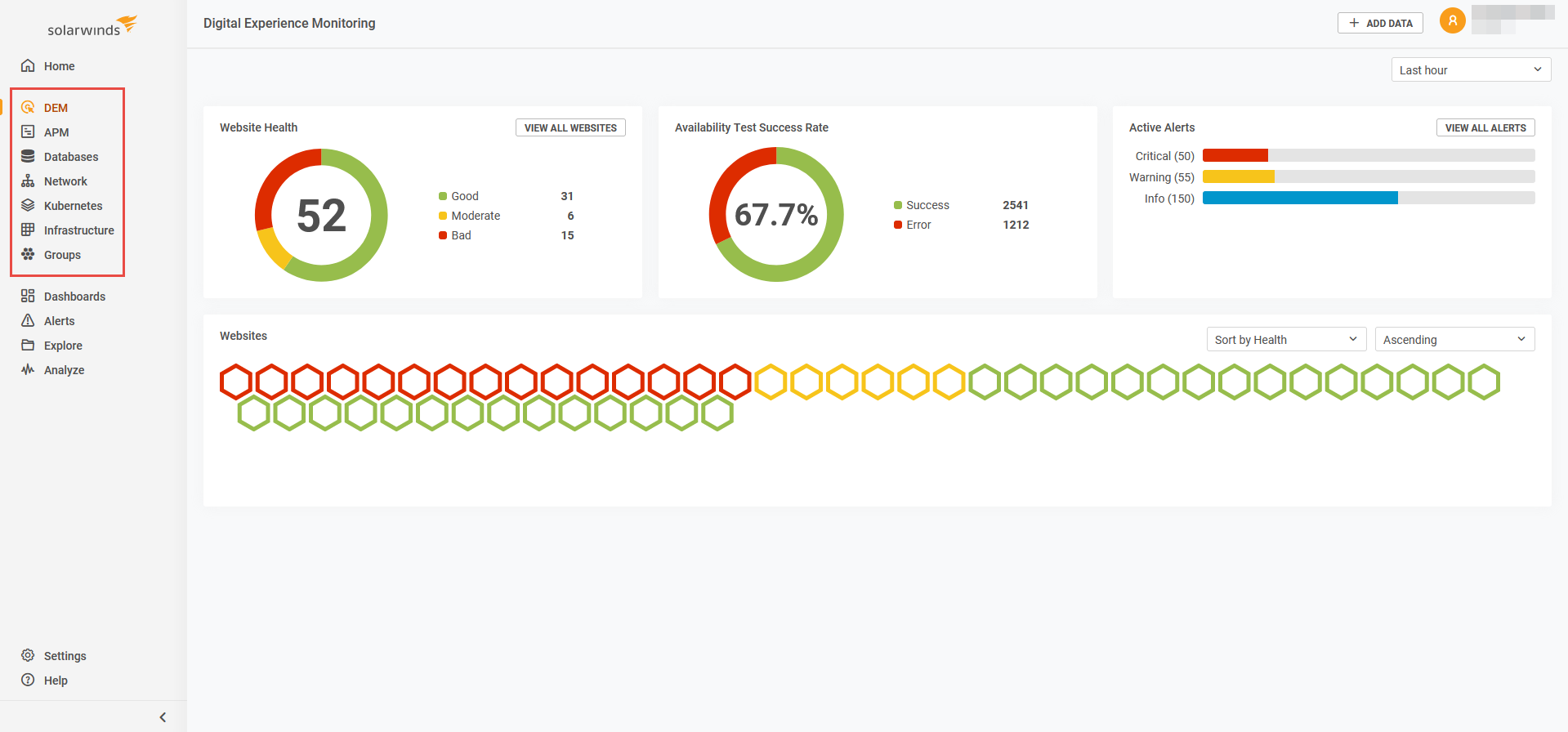

The DEM area overview provides widgets summarizing data collected from all monitored websites. To access this data, click DEM in the left pane.

The widgets in the area overview display the following information about all monitored websites:

  • Website Health: A health score, which indicates the overall health and performance of the websites. To view individual monitored websites and their details in the Entity Explorer, click View all websites in the top-right of the widget.

  • Availability Test Success Rate: The success rate of all availability tests executed on the websites.

  • Active Alerts: All alerts relevant for the websites that were triggered but have not been resolved yet. To view all active alerts associated with the monitored websites, click View all alerts.

  • Websites: A color-coded grid view of all monitored websites. A hexagon represents each entity and the color of the hexagon indicates whether the entity's health score is good, moderate, or bad. Hovering over the hexagons displays a pop-up containing the name of the website and its health score. You can sort the view by name or health and ascending or descending order. Click an entity, and then click View Details in the Inspector Panel to access the entity details view.

APM

The APM area overview gathers performance metrics from all services powering your application. The widgets in the area overview display the following information:

  • Service Health: A health score, which indicates the overall health and performance of services. To view individual monitored services and their details in the Entity Explorer, click View all services.

  • Active Alerts: All alerts relevant for the services that were triggered but have not been resolved yet. To view all active alerts associated with the monitored services, click View all alerts.

  • Total Exceptions: The error rate of all monitored services. To view all errors associated with the monitored services in the Traces Explorer, click View all errors.

  • Services & Transactions: (size by number of requests, color by error rate): Color-coded overview of all monitored services and their transactions, request counts, and error rates.

Databases

The Databases area overview contains two tabs - Overview and Profiler.

Overview

When database instances are monitored, the data for all entities is summarized in widgets in the Databases area overview. To access the area overview, click Databases in the left pane. The widgets in the area overview display the following information:

  • Number of Queries: Displays the number of queries that were executed on all monitored database instances in the specified time period.

  • Users: Shows the number of active users for all monitored database instances in the specified time period.

  • Database Instance Health: A health score, which indicates the overall health and performance of all databases. To view individual monitored databases and their details in the Entity Explorer, click View all databases.

  • Active Alerts: All alerts relevant to databases that were triggered but have not been resolved yet. To view all active alerts associated with the monitored databases, click View all alerts.

  • Database Instances: Color-coded overview of all monitored database instances.

  • Concurrency: The total execution time of all queries which finished in a given second on all monitored databases.

  • Throughput: The number of queries that finished executing per second on all monitored databases.

  • Average Latency: The Average Latency widget shows average latency for all database instances over the selected time period. Latency is the amount of time in milliseconds taken per disk I/O operation.

  • Error Rate: The number of errors that occurred in a given second on all monitored databases.

  • Instances tab: Table overview of monitored database instances, providing the instance name, health status and type.

  • Top 10 Queries: tab: The ten most common queries are displayed, showing details of each.

Profiler

To access the Profiler, click Databases and click Profiler. Use the Profiler to rank your queries or query tags by varying metrics such as the top 10 queries by total time and gain insight into the most time consuming and frequently executed queries in your database. See Profiler for more information.

Network

The Network area overview contains two sub items - Devices and Flows.

Devices

The Devices area overview displays data collected from all monitored network devices.

Flows

If you collect NetFlow on your devices, the following metrics can be displayed in the Flows area overview. Metrics are collected from all observed entities, based on the Orion.Netflow.Flows.Bytes metric. See Monitor flow data.

  • Top Endpoints: An area chart of the monitored endpoints that are producing the most traffic on your monitored network.

  • Top Conversations: An area chart displaying most bandwidth-consuming conversations conducted over your monitored network.

  • Top Protocols: A donut chart displaying the protocols used most for traffic on your monitored network.

  • Top Countries: A donut chart displaying the countries hosting endpoints that transmit the most data over your monitored network.

  • Top Applications: An area chart displaying the top applications responsible for monitored traffic on your network, ranked in order of traffic volume.

Flow filters

Starting with Network Collector 2022.4, you can filter flow data to display only communication inside the organization, communication outside of the organization, or all flow data.

How do the filters work?

The Network Collector marks IP addresses within your organization as private. If both addresses in a communication are marked as private, the flow data are displayed when you apply the East/West filter. If one of the IP addresses is not marked as private, the flow data are displayed when you apply the North/South filter.

  • All traffic: All flow data is displayed in the charts.

  • East/West: Only flows from within the organization are displayed.

  • North/South: Only flows regarding communication outside of the organization are displayed.

The filters do not support IPv6 addresses and multicast traffic. While you can see these on the All traffic view, IPv6 addresses and multicast traffic are not displayed on the filtered views.

You can also use time filters in the upper right part of the screen. To use a custom time range, scroll down and select Custom at the bottom of the drop-down list.

Kubernetes

An overview summary of all monitored Kubernetes entities is available with the other area overviews. This summary includes a selection of widgets displaying key performance indicators for the Kubernetes entities.

  • Clusters Health: A health score, which indicates the overall health and performance of all monitored Kubernetes clusters.

  • Health Distribution: An area chart displaying the health distribution for all your Kubernetes clusters.

  • Clusters per Infrastructure Provider: Shows the total count of clusters for each infrastructure provider.

  • Top 5 Clusters (Nodes): The five most common clusters are displayed, showing details related to nodes.

  • Top 5 Clusters (CPU Utilization): The five most common clusters are displayed, showing details related to CPU utilization.

  • Top 5 Clusters (Memory Utilization): The five most common clusters are displayed, showing details related to memory utilization.

  • Clusters: Overview of all monitored clusters, filtered by Health Score and Name. You can choose to view the information as a list or as grid. Clicking the cluster name opens the cluster details.

Infrastructure

The Infrastructure area overview collects data from your self-managed hosts and cloud platforms (AWS or Azure). To access overviews for individual sections, click one of the sub items under Infrastructure in the left pane, depending on which data you want displayed.

AWS

Click AWS in the left pane to view data collected from your AWS-managed hosts and services.

  • No. of Accounts: The total number of AWS accounts connected with the monitored AWS hosts and services. To view and manage individual AWS accounts in Cloud Accounts, click View all accounts.

  • All Entities Health: Indicates the overall health and performance of your host instances. The health score displays as a percentage between 0% and 100% based on CPU utilization and a machine status.

  • Active Alerts: Shows how many alerts are currently active for all monitored AWS hosts.

  • Metrics Ingested: The total number of metric values used to evaluate the performance of all your AWS-managed hosts and services. To view the metrics for your observed entities in the Metrics Explorer, click View all metrics.

  • Regions: The total number of AWS service regions.

  • Service Types: The total number of monitored AWS service types.

  • All Accounts: List of monitored AWS accounts. The table displays the account status and name and service type, entity, region, ingested metrics, and alert history counts.

Azure

Click Azure in the left pane to view data collected from your Azure-managed hosts and services.

  • No. of Accounts: The total number of Azure accounts connected with the monitored Azure hosts and services. To view and manage individual Azure accounts in Cloud Accounts, click View all accounts.

  • All Entities Health: Indicates the overall health and performance of your host instances. The health score displays as a percentage between 0% and 100% based on CPU utilization and a machine status.

  • Active Alerts: Shows how many alerts are currently active for all monitored Azure hosts.

  • Metrics Ingested: The total number of metric values used to evaluate the performance of all your Azure-managed hosts and services. To view the metrics for your observed entities in the Metrics Explorer, click View all metrics.

  • Regions: The total number of Azure service regions.

  • Service Types: The total number of monitored Azure service types.

  • All Accounts: Overview of monitored AWS accounts. The table displays the account status and name and service type, entity, region, ingested metrics, and alert history counts.

Hosts

Click Hosts in the left pane to view data collected from both your self-managed hosts and cloud platforms.

  • Hosts Health: Indicates the overall health and performance of your host instances. To view individual monitored hosts and their details in the Entity Explorer, click View all hosts.

  • Active Alerts: Shows how many alerts are currently active for all monitored hosts. To view all active alerts associated with monitored hosts, click View all alerts.

  • AWS EC2s Health: Indicates the overall health and performance of your AWS hosts instances.

  • AWS EC2s: Color-coded grid view of all monitored AWS hosts. A hexagon represents each entity and the color of the hexagon indicates whether the entity's health score is good, moderate, or bad. Hover over the hexagons to see the name of the host and its health score. Click an entity, and then click View Details in the Inspector Panel to access the entity details view.

  • AWS EC2s Active Alerts: All alerts relevant to AWS hosts that were triggered but have not been resolved yet.

  • Azure VMs Health: Indicates the overall health and performance of your Azure hosts instances.

  • Azure VMs: Color-coded grid view of all monitored Azure hosts. Hover over the hexagons to see the name of the host and its health score. Click an entity, and then click View Details in the Inspector Panel to access the entity details view.

  • Azure VMs Active Alerts: All alerts relevant to Azure hosts that were triggered but have not been resolved yet.

  • K8s Nodes Health: Indicates the overall health and performance of all your Kubernetes hosts instances.

  • K8s Nodes: Color-coded grid view of all monitored Kubernetes hosts. Hover over the hexagons to see the name of the host and its health score. Click an entity, and then click View Details in the Inspector Panel to access the entity details view.

  • K8s Nodes Active Alerts: All alerts relevant to Kubernetes hosts that were triggered but have not been resolved yet.

  • On-Prem Hosts Health: Indicates the overall health and performance of your on-premise hosts instances.

  • On-Prem Hosts: Color-coded grid view of all monitored on-premise hosts. Hover over the hexagons to see the name of the host and its health score. Click an entity, and then click View Details in the Inspector Panel to access the entity details view.

  • On-Prem Hosts Active Alerts: All alerts relevant to on-premise hosts that were triggered but have not been resolved yet.

  • Operating Systems: Shows which operating systems are used and their count.

  • Architecture: Shows which platforms are used and their count.

Groups

In the Group area overview, you can observe widgets collecting data from all monitored entity groups.

  • Entity Group Health: A health score, which indicates the overall health and performance of all monitored entity groups. To view individual entity groups and their details in the Entity Explorer, click View all entity groups.

  • Active Alerts: All alerts relevant to entity groups that were triggered but have not been resolved yet.

  • Entity Group: List of all monitored entity groups, filtered by Health Score and Name. Clicking the entity group name opens the entity group details.
