Monitor with AppInsight applications
SolarWinds SAM includes several specially designed out-of-the-box application monitor templates that you can use to monitor virtually every aspect of key business tools, such as Microsoft Active Directory, to get relevant performance information from the server level. They also enable you to drill down into the data store layer for performance data. Collectively, these templates are called the AppInsight™ templates.
Offering a level of detail and expert knowledge far beyond what standard templates provide, you can assign AppInsight templates to nodes in many ways, including automatically during Discovery. Just as standard SAM templates convert to application monitors after being assigned to nodes, AppInsight templates become AppInsight applications that monitor nodes.
The following AppInsight applications are available to monitor business-critical functions in your SAM environment:
- AppInsight for Active Directory
- AppInsight for Exchange
- AppInsight for IIS
- AppInsight for SQL

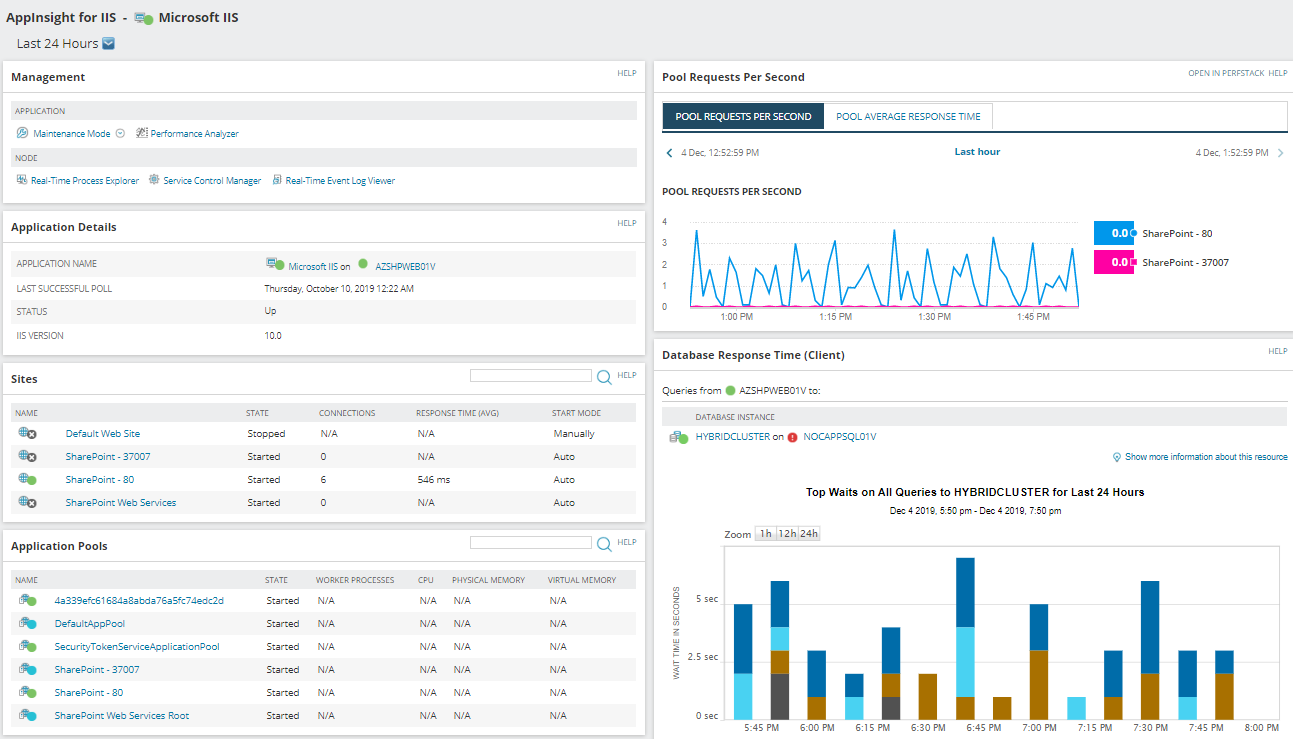

The following figure shows some of the data provided by AppInsight for IIS:
Note the following details about using AppInsight templates and applications:
- WMI is the preferred polling method because some node data, such as disk I/O, is only available via WMI monitoring.
Starting in SAM 2020.2, WinRM is the default transport method used to collect data for WMI-based component monitors.
- All AppInsight templates support the Orion agent for Windows. See Monitor with Orion agents in SAM.
- Due to the complexity of these templates:
- Allow extra time for configuration to finish when assigning AppInsight to nodes.
- You cannot add component monitors to AppInsight templates or application monitors.
- Some component monitors have default settings that you cannot modify due to dependencies.
- Some component monitors cannot be disabled.
- You cannot import or export AppInsight templates in the Orion Web Console, or assign them to groups of nodes.
Unlike standard SAM templates that you can update by importing the latest versions from THWACK, AppInsight templates are updated automatically during product upgrades.
- If using component-based SAM licensing, AppInsight applications consume licenses at flat rates.
- You can download PowerShell scripts from THWACK to add AppInsight applications to nodes, enabling you to configure large environments quickly. See Use automation scripts to add AppInsight applications to nodes with the Orion SDK.
The dynamic behavior of complex AppInsight component monitors can impact polling loads in large deployments (for example, if monitoring a large quantity of SQL servers). If excessive polling slows down your SAM environment, consider adjusting the frequency of polling intervals. For more tips, see SAM polling recommendations.
To learn more about SAM's AppInsight applications, see:
- Monitor with AppInsight for Active Directory
- Monitor with AppInsight for Exchange
- Monitor with AppInsight for IIS
- Monitor with AppInsight for SQL
See also Deep Dive on using AppInsight Templates.
