Monitor VPN tunnels on ASA firewalls in NPM
Get basic visibility to your nodes so that you can troubleshoot tunnels with issues.
- Log in to the Orion Web Console.
- On the Summary view, locate and click your ASA firewall node to go to the Node Details view.
- Click the Site-to-Site VPN or remote access VPN icon in the subviews menu on the left side of the Orion Web Console.

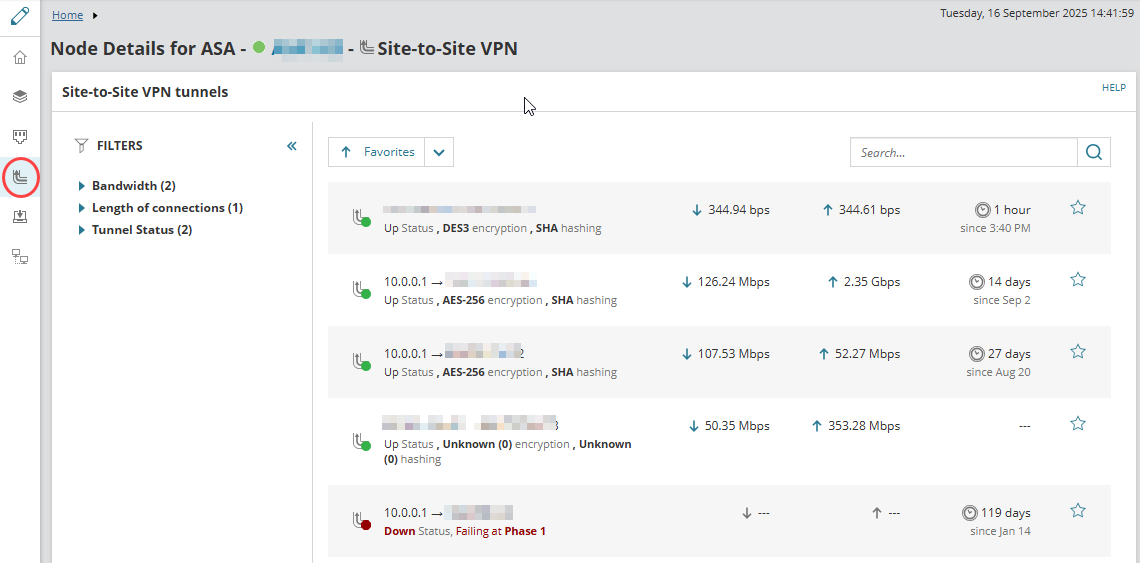

Site-to-Site VPN provides information about office-to-office tunnels.
Non-existent or dead tunnels are automatically removed by the Orion Collector Service.
Review the list of Site-to-Site VPN tunnels on the ASA device. Use the search and filter options to find a Site-to-Site VPN tunnel and see more details.
Click the star icon to add a Site-to-Site VPN tunnel to favorites that are featured on the Node Details for ASA - Summary view.
If the tunnel is down, see the information about the last phase completed successfully.
For up tunnels, see the encryption, hashing info, in and out traffic, and the duration of the tunnel.

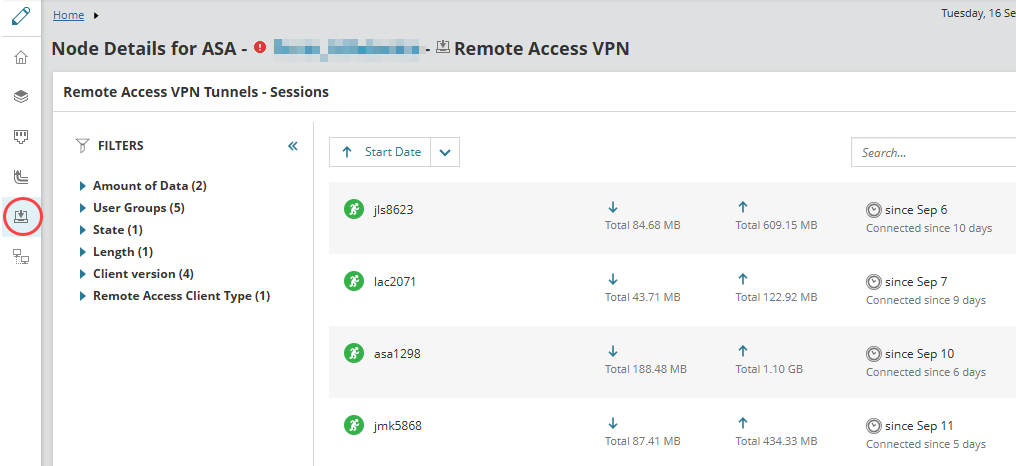

On the Remote access VPN subview, you can see a list of remote access tunnels, with the user name and tunnel duration details.
By default, non-existent or dead tunnels are removed after two days.
Search for tunnels, or filter results to find specific tunnels.
