Discover your network with NPM

After you have installed and configured SolarWinds NPM, log in to NPM and scan your network for devices to monitor.

Log in to the Orion Web Console

In a web browser, navigate to http://HostnameOrIPaddress:port, where

  • HostnameOrIPaddress the hostname or IP address of the server where NPM is installed
  • port is the port defined for the website, specified in the Configuration wizard. By default, this is 8787.

Discovery is a term used to describe the process SolarWinds Orion uses to identify network elements.

Before you discover your network, go through the Discovery checklist.

  1. If the Discovery wizard does not start automatically after configuration, log in to the Orion Web Console and click Settings > Network Discovery.

  2. Click Add New Discovery, and then click Start.

  3. If this is your first discovery, click Add IP Addresses and enter a small number of IP addresses, one per line.

    As you scale your implementation, you can use the following scanning options.

    Option Description
    IP Ranges

    Use this option to scan one or more IP ranges.

    If you have many IP ranges to scan, consider adding multiple discovery jobs rather than including all ranges in a single job.

    Subnets

    Use this option to scan every IP address in a subnet. SolarWinds recommends scanning at most a /23 subnet (512 addresses max).

    Scanning a subnet returns everything that responds to ping. Use this option only to scan subnets where you want to monitor the majority of devices.

    IP Addresses

    Use this option for a limited number of IP addresses that do not fall in a range.

    A network discovery job can take a long time to complete, so SolarWinds recommends using this option when you are first starting out.

    Active Directory

    Use this option to scan an Active Directory Domain Controller.

    Using Active Directory for discovery is useful for adding large subnets because Orion can use the devices specified in Active Directory instead of scanning every IP address.

  4. If you enabled the Quality of Experience (QoE) agent during installation, the Agents panel appears. Select the Check all existing node box to ensure that any agents you deploy, including the one on your Orion server, are up-to-date. If there are no nodes using agents, you can leave this option unchecked.

  5. To discover VMware vCenter or ESX hosts, specify the following on the Virtualization panel:

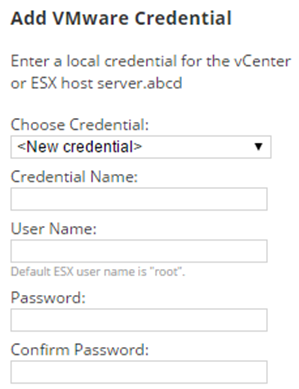

    1. Check Poll for VMware, and click Add vCenter or ESX Credential.

    2. Select <New credential> and provide required information.

      If you do not add the host credentials, Orion still discovers the virtual machines (VMs) on the host. However, you will not be able to see the relationships mapped between the VMs and hosts.

  6. On the SNMP panel:

    1. If all devices on your network require only the default SNMPv1 and SNMPv2 public and private community strings, click Next.

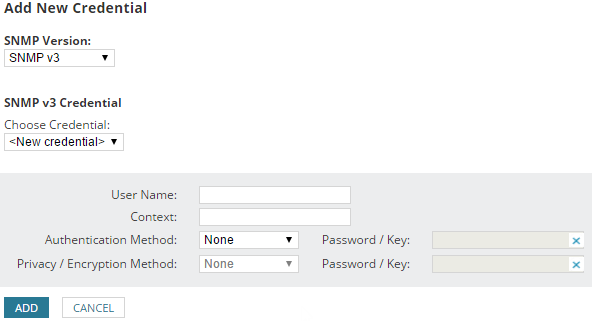

    2. If any device on your network uses a community string other than public or private, or if you want to use an SNMPv3 credential, click Add Credential and provide the required information.

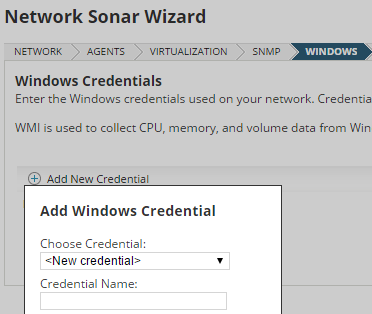

  7. To discover WMI or RPC-enabled Windows devices, click Add New Credential and provide the required information on the Windows panel.

    SolarWinds recommends that you monitor Windows devices with WMI instead of SNMP.

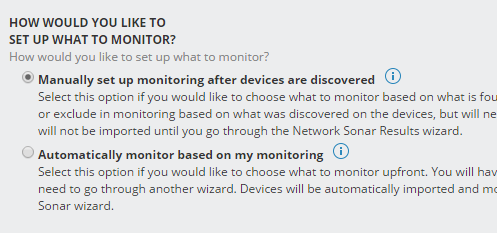

  8. On the Monitoring Settings panel, SolarWinds recommends manually setting up monitoring the first time you run discovery. This allows you to review the list of discovered objects and select the ones you want to monitor.

    When you scale monitoring, you can configure discovery to automatically start monitoring objects it finds.

  9. On the Discovery Settings panel, click Next.

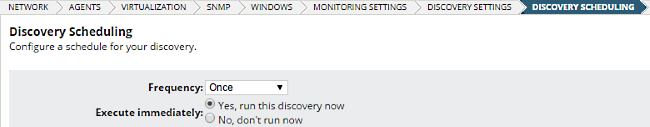

  10. Accept the default frequency and run the discovery immediately.

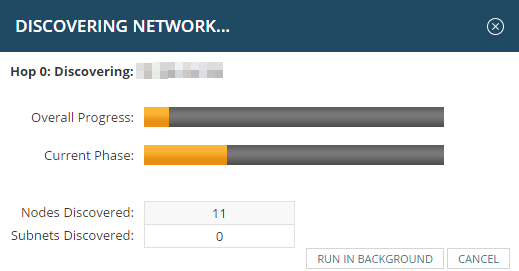

    Discovery can take from a few minutes to a few hours, depending on the number of network elements the system discovers.
