Legacy rule migration and LA/LV feature comparison

This SolarWinds Platform topic applies only to the following products:

Hybrid Cloud Observability EssentialsHybrid Cloud Observability Advanced

NCMNPMSAMUDTVMAN

Legacy syslogs and traps have been removed and replaced with new log functionality included in SolarWinds Platform Log Viewer, SolarWinds Platform, and Hybrid Cloud Observability. To learn more about the features available in each product, see the feature comparison chart below.

SolarWinds Platform Log Viewer, SolarWinds Platform, and Hybrid Cloud Observability only accept legacy traps and syslogs from nodes monitored in SolarWinds Platform.

When you upgrade to SolarWinds Platform from version 2020.2.6 or earlier, your current syslog and trap rules are automatically migrated during installation. The new log functionality supports most legacy functionality. However, some rule conditions are not currently supported and cannot be migrated. Learn more about rule condition compatibility in the rule conditions chart below.

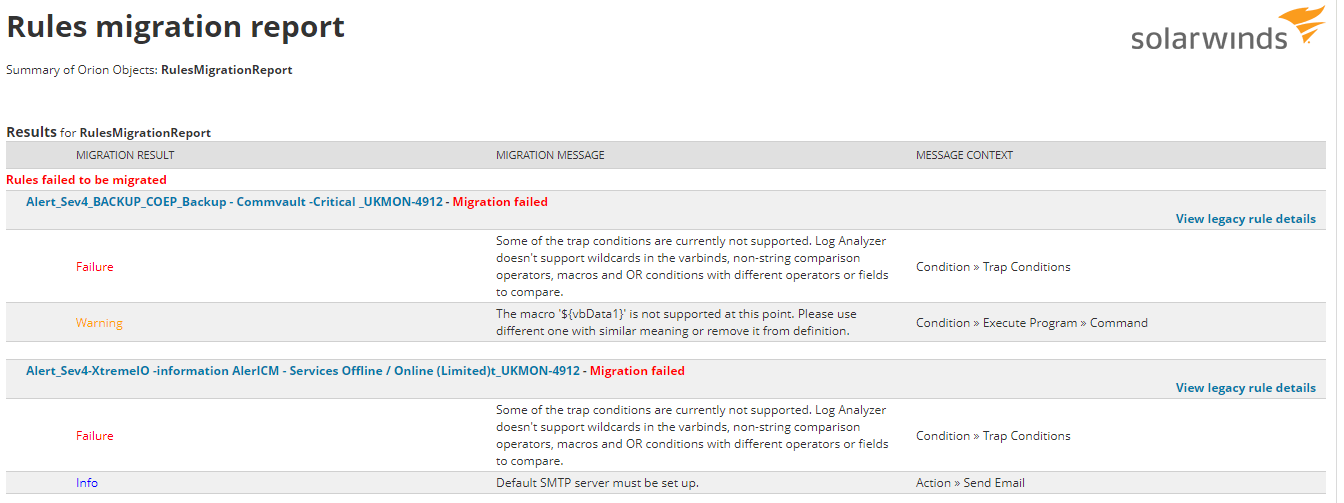

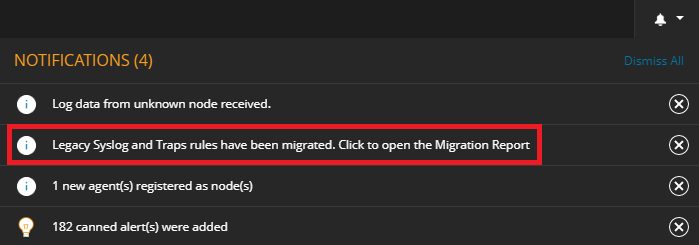

Once the rule migration is complete, a notification appears in the SolarWinds Platform Web Console with a link to the Rules migration report.

The report details the status of each migrated rule as follows:

  • Success - Rule migrated successfully
  • Warning - Rule migrated without the designated actions and is disabled
  • Fail - Rule was not migrated
  • Info - Rule successfully migrated but may perform differently than expected

You can also access the report in the SolarWinds Platform Web Console by navigating to Reports > All Reports > Rule migration report.

Click any rule in the Report to launch the Rule Builder for reviewing and editing the rule.

Migration results may vary based on the configuration of migrated rules. For example:

Input legacy rule Status Migration result
The rule contains a misconfigured action which is supported by migration. Warning The action is not added to the final rule and the rule is disabled.
The rule contains an action which is not supported by migration. Failure The rule is created without that action and the rule is disabled.
The rule contains a condition that is not supported. Failure The rule is not migrated.

Legacy syslog/trap and LA/LV feature comparison

The tables below compare the rule conditions and actions that can be defined in legacy syslogs and traps to rule conditions and actions supported by LA/LV.

Find variables that can be used in syslog alert messages here.

Conditions

Source Rule Condition Legacy LA/LV Note
Syslog & Trap Source Addresses
Syslog & Trap Name
Syslog & Trap Enabled
Syslog & Trap Apply to engines
Syslog & Trap EngineID
Syslog Facilities
Syslog Severity
Syslog & Trap DNS Host Name
Syslog & Trap Time Of Day
Syslog & Trap Days Of Week
Syslog Message
Syslog Message Type Message Type is a subset of Message that populates under Message Contains or Message Matches Regex.
Syslog & Trap Trigger Threshold
Trap Trap Details **
Trap Conditions ** Wildcards in OIDs are not supported. The full varbind OID or name is required.
Syslog & Trap Community String

Actions

Source Action Type Legacy LA/LV Note
Syslog & Trap Discard Processing
Syslog & Trap Tag Processing *

In LA 2022.3, each tag is required to have both a name and a color.

This feature is only available in SolarWinds Platform.

Trap Flag with specific color Processing
Syslog Modify the syslog message Processing
Syslog & Trap Log to a file Alerting
Syslog & Trap Log to a Windows event log Alerting
Syslog & Trap Forward the syslog/trap Processing You cannot select network adapters in LA 2022.3.
Syslog Send a new syslog message Alerting
Syslog Send an SNMP trap Alerting
Syslog & Trap Play a sound Alerting
Syslog & Trap Text to speech output Alerting
Syslog & Trap Execute an external program Processing/Alerting In LA 2022.3, you can choose which account will run the program.
Syslog & Trap Send an email/page Alerting You can only implement one set of credentials per SMTP server.
Syslog & Trap Execute an external VB script Alerting
Syslog & Trap Send a Windows Net message Alerting
Syslog & Trap Stop processing rules Processing
Syslog & Trap Change interface status Processing

* Partially supported

** For details, see below:

Rule Condition Legacy UI LA/LV
Trap Details This is partially supported. Missing: "Multiple conditions always apply AND only." "Inability to use a different operator while checking more values within a single condition."
Trap Conditions This is partially supported. Missing: "Multiple conditions always apply AND only." "Inability to use a different operator while checking more values within a single condition."
