Send logs from AWS ECS Fargate using Fluent Bit FireLens Sidecar

You must be using Fluent Bit 3.x or newer.

AWS ECS tasks running on Fargate can forward container logs to SolarWinds Observability SaaS using Fluent Bit FireLens Sidecar. SolarWinds Observability SaaS supports two configurations:

• A simple configuration (recommended for most users) allows you to use the AWS-provided Fluent Bit init image and to configure log ingestion entirely in the ECS task definition.
• An advanced configuration allows users needing additional filtering, transformation, or routing control to use a custom Fluent Bit image and configuration.

Start with the simple configuration unless you have a specific requirement that it cannot meet.

Simple configuration

A simple configuration is the preferred option for most users. This configuration will use the AWS-provided Fluent Bit init image and will configure log ingestion entirely in the ECS task definition. No custom image or external Fluent Bit configuration file is required.

Prerequisites

To configure ECS Fargate logging with Fluent Bit FireLens Sidecar, you will need the following:

• An ECS Fargate task definition.
• A SolarWinds Observability SaaS ingestion token.
• The collector hostname for your SolarWinds Observability SaaS data center:
  • logs.collector.na-01.cloud.solarwinds.com
  • logs.collector.na-02.cloud.solarwinds.com
  • logs.collector.eu-01.cloud.solarwinds.com
  • logs.collector.ap-01.cloud.solarwinds.com

Step 1: Configure the task definition

Add the following configuration to your task definition. Replace the application image, collector hostname, ingestion token, and ECS service name with your values.

{
  "family": "checkout-api",
  "requiresCompatibilities": ["FARGATE"],
  "networkMode": "awsvpc",
  "cpu": "512",
  "memory": "1024",
  "containerDefinitions": [
    {
      "name": "app",
      "image": "123456789012.dkr.ecr.us-east-2.amazonaws.com/checkout-api:latest",
      "essential": true,
      "logConfiguration": {
        "logDriver": "awsfirelens",
        "options": {
          "Name": "http",
          "Host": "logs.collector.na-01.cloud.solarwinds.com",
          "Port": "443",
          "URI": "/v1/logs/bulk/YOUR_INGESTION_TOKEN",
          "tls": "on",
          "tls.verify": "on",
          "Format": "json_lines",
          "json_date_key": "timestamp",
          "json_date_format": "iso8601",
          "Header": "X-Otel-Resource-Attr host.name=checkout-api, service.name=${ECS_TASK_ID}",
          "Retry_Limit": "5"
        }
      }
    },
    {
      "name": "log_router",
      "image": "public.ecr.aws/aws-observability/aws-for-fluent-bit:init-3.4.13",
      "essential": true,
      "firelensConfiguration": {
        "type": "fluentbit",
        "options": {
          "enable-ecs-log-metadata": "true"
        }
      },
      "memoryReservation": 64
    }
  ]
}

When adapting this example, use the following values:

• Set Host to the collector hostname for your SolarWinds Observability SaaS data center.
• Replace YOUR_INGESTION_TOKEN with your SolarWinds Observability SaaS ingestion token.
• Set host.name to the ECS service name.
• Keep service.name=${ECS_TASK_ID} exactly as shown.
• Use an init-* image tag. The init-3.4.13 tag is the validated example.
• Keep enable-ecs-log-metadata set to true to include ECS metadata with each record.

Step 2: Deploy the task definition

Take the following steps to deploy the task definition:

1. Register a new revision of the task definition.

2. Deploy the revision to your ECS Fargate service.

3. Generate log output from the application container.

Step 3: Verify the logs

In SolarWinds Observability SaaS, confirm that the logs are searchable with the ECS service name as the hostname and the ECS task ID as the program value: host:checkout-api program:<ECS_TASK_ID>.

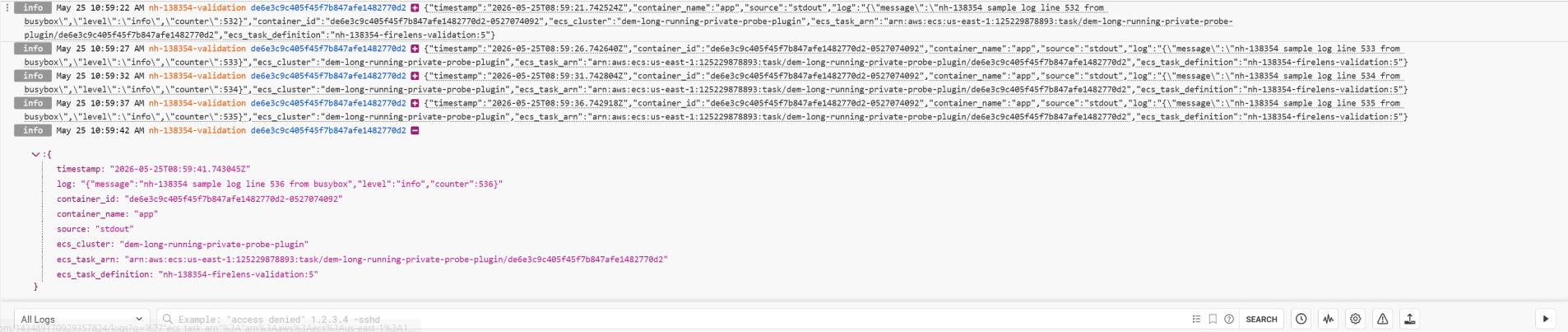

Records arrive as JSON objects, not bare log lines. The application message is stored in the log field, with ECS metadata in the same object. A record has the following structure:

{
"timestamp": "2026-08-20T07:59:04.249644Z",
"container_id": "<container-id>",
"container_name": "app",
"source": "stdout",
"log": "Example application log message",
"ecs_cluster": "<ecs-cluster>",
"ecs_task_arn": "arn:aws:ecs:<region>:<account-id>:task/<cluster>/<task-id>",
"ecs_task_definition": "<family>:<revision>"
}

The ECS task ID is available in the program field from the X-Otel-Resource-Attr header.

Advanced configuration

Users who need additional filtering, transformation, or routing control can use a custom Fluent Bit image and configuration to configure log ingestion.

Values needed for configuration

SolarWinds Observability SaaSfield	Source on AWS ECS Fargate	How to convert to environmental variable
host.name = ECS service name	Not auto-injected by ECS	Set explicitly in the task definition's environment block per service
service.name = ECS task ID	Part of ECS_CONTAINER_METADATA_URI_V4	Parse with a 2-line shell entrypoint

Step 1: Custom Fluent Bit sidecar image (Dockerfile)

FROM amazon/aws-for-fluent-bit:3.3.2

COPY entrypoint.sh /entrypoint.sh
COPY extra.conf    /fluent-bit/etc/extra.conf
RUN chmod +x /entrypoint.sh

ENTRYPOINT ["/entrypoint.sh"]

entrypoint.sh derives the task ID from the metadata URI using POSIX shell parameter expansion, then hands off to Fluent Bit:

#!/bin/sh
# ECS_CONTAINER_METADATA_URI_V4 is always set on Fargate platform 1.4+:
#   http://169.254.170.2/v4/<taskId>-<containerId>
# Take the path tail (last '/' segment) and strip the container suffix after the first '-'.
last_segment="${ECS_CONTAINER_METADATA_URI_V4##*/}"
SWO_TASK_ID="${last_segment%%-*}"
export SWO_TASK_ID

exec /fluent-bit/bin/fluent-bit \
  -e /fluent-bit/firehose.so \
  -e /fluent-bit/cloudwatch.so \
  -e /fluent-bit/kinesis.so \
  -c /fluent-bit/etc/fluent-bit.conf

Step 2: Fluent Bit override config (extra.config)

This is the file FireLens layers on top of its auto-generated base config:

[OUTPUT]
    Name                http
    Match               *
    Host                ${SWO_LOGS_HOST}
    Port                443
    URI                 /v1/logs/bulk
    tls                 on
    tls.verify          on
    Format              json_lines
    json_date_key       timestamp
    json_date_format    iso8601
    allow_duplicated_headers false
    Header              Authorization        Bearer ${SWO_INGESTION_TOKEN}
    Header              Content-Type         application/octet-stream
    Header              X-Otel-Resource-Attr host.name=${SWO_HOST_NAME}, service.name=${SWO_TASK_ID}
    Retry_Limit         5

Set SWO_LOGS_HOST per DC: logs.collector.na-01.cloud.solarwinds.com, swap the na-01 prefix to match (na-02, eu-01, ap-01).

Step 3: ECS task definition

{
  "family": "checkout-api",
  "requiresCompatibilities": ["FARGATE"],
  "containerDefinitions": [
    {
      "name": "app",
      "image": "123456789012.dkr.ecr.us-east-2.amazonaws.com/checkout-api:latest",
      "essential": true,
      "logConfiguration": {
        "logDriver": "awsfirelens"
      }
    },
    {
      "name": "log_router",
      "image": "123456789012.dkr.ecr.us-east-2.amazonaws.com/swo-fluent-bit:latest",
      "essential": true,
      "firelensConfiguration": {
        "type": "fluentbit",
        "options": {
          "enable-ecs-log-metadata": "true",
          "config-file-type": "file",
          "config-file-value": "/fluent-bit/etc/extra.conf"
        }
      },
      "environment": [
        { "name": "SWO_HOST_NAME", "value": "checkout-api" },
        { "name": "SWO_LOGS_HOST", "value": "logs.collector.na-01.cloud.solarwinds.com" }
      ],
      "secrets": [
        {
          "name": "SWO_INGESTION_TOKEN",
          "valueFrom": "arn:aws:secretsmanager:us-east-2:123456789012:secret:swo/ingestion-token-XXXXXX"
        }
      ],
      "memoryReservation": 64
    }
  ]
}

Please note the following:

• SWO_HOST_NAME is set to the ECS service name (checkout-api). You will need to set this per task definition.

• SWO_TASK_ID is not in this JSON. The entrypoint computes it from ECS_CONTAINER_METADATA_URI_V4 at container start, which ECS always sets on Fargate.

• SWO_INGESTION_TOKEN is fed in via Secrets Manager. Don't inline the token in plain task-definition JSON in production.

Behavior in SolarWinds Observability SaaS

After the task starts, every log from the app container will land with the following:

• System (Host) = checkout-api (your ECS service name)

• program = the task ID (e.g., a1b2c3d4e5f64789abcd1234567890ef)

This is searchable as

host:checkout-api  program:a1b2c3d4e5f64789abcd1234567890ef

Adding the record_modifier filter before OUTPUT will back ECS cluster, container name, and stream into each line:

[FILTER]
    Name   record_modifier
    Match  *
    Record ecs_cluster        ${ECS_CLUSTER}
    Record ecs_service_name   ${SWO_HOST_NAME}
    Record ecs_task_id        ${SWO_TASK_ID}

ecs_cluster, ecs_task_arn, ecs_task_definition, container_name, container_id, and source are already added automatically because enable-ecs-log-metadata: true is on.
