Icons and Labels
SolarWinds NTM version 2.2 represents devices on maps with these icons:
| Icon | Explanation |
|---|---|
|
EnergyWise device |
|
Firewall |
|
Hyper-V Guest |
|
Hyper-V Host |
|
ICMP Node |
|
L3/L2 Switch |
|
Network Segment Node |
|
Printer |
|
Router |
|
Router Wireless AP |
|
EnergyWise Device |
|
Switch |
|
VMWare Datacenter |
|
VMWare Guest |
|
VMWare Host |
|
VOIP Phone |
|
Wireless AP |
|
Wireless Controller |
|
WMI Node |
|
Shadow Node |
|
SNMP Node |
Additionally, you can use custom icons on your computer to represent any node.
Adjust the icon for a node
- Right-click a node and select Custom Icon.

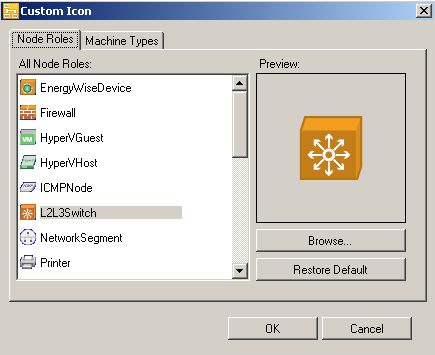

- Select the relevant Node Role.
- If you want to use a custom icon for the node role, click Browse and locate the desired image file on your computer.

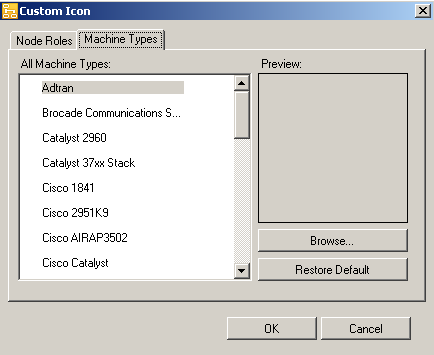

- Click the Machine Types tab.
- If you want to use a custom icon for the machine type, click Browse and locate the desired image file on your computer.
- Click OK.
- To resize the icon, right-click, select Icon Size > Small/Medium/Large/Default.
Adjust the label for a node
Click the label and drag to relocate. Alternately, right-click the label, select Place Text and the desired option.
