Reserve an IP Address on a Windows DHCP server

The following steps update the reservation status of an IP address on a Windows DHCP server:

1. Go to My Dashboards > IP Addresses > Manage Subnets & IP Addresses.
2. Navigate to the subnet containing in the IP Address View.
3. Select the IP address and click Set Status.
4. Set the status to Reserved.

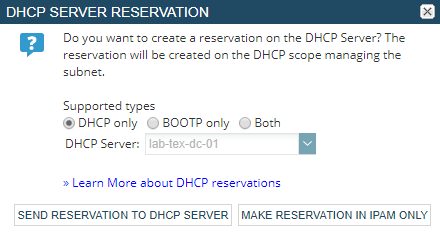

5. Select the type of reservation and the DHCP Server to use, if applicable.



   • Click Send Reservation to DHCP Server, if you want to make an actual reservation on the DHCP scope managing this subnet.
   • Click Make Reservation in IPAM Only, if you only want to make the reservation in the IPAM database.

Make a Reserved address available again

If you no longer need to reserve this address, change the Reserved status to Available to free the IP address for active devices.

1. Follow the steps above to step 3, selecting the reserved address.
2. Select Available from the Status drop-down.
3. Click OK.

   The data fields for the associated device are blanked out.

4. Check the Remove Reservation box.
5. Click Save.
