Documentation forDatabase Mapper
Effective February 28, 2024, Database Mapper has reached its end of life and is no longer available or supported. If you liked Database Mapper, consider trying another SolarWinds product.

Database Mapper SSAS

EOL: An end of life announcement has been made for Database Mapper on February 28, 2023. See the Solarwinds End of Life Policy for more information.

SSAS Server

Solution Item Icon Solution Item Description
Database Mapper SSAS Server Provider

SolarWinds Database Mapper is able to document SSAS Cubes and Databases across major versions of SQL Server. See the System Requirements article for details on prerequisites. With the SSAS Cube and Database Documentation you can see the properties and attributes of each dimension in a cube.

Adding SSAS Server

Add an SSAS Server Solution item to your Database Mapper Solution by completing the following steps:

1. Select Add to add a new Solution, or select Open to openan existing solution in the Database Mapper Configuration tool. Database Mapper Solution Configuration Tool Open Solution

2. Select Add to open the Add Solution item window. Database Mapper Solution Configuration Tool Add Solution Item

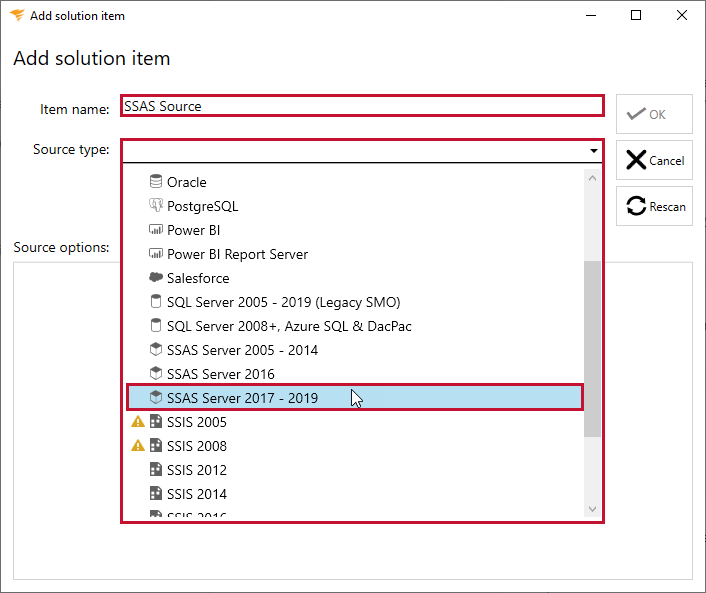

3. Enter an item name, and then select SSAS Server 2005- 2014, SSAS Server 2016, or SSAS Server 2017 - 2019 provider from the Source type drop-down list. Database Mapper Add Solution Item SSAS Server 2017-2019

Important:

Use the SSAS Server provider when connecting to the following SSAS Modes:

  • MultiDimensional instances with server versions between 2005 and 2014
  • Tabular instances with server versions between 2012 and 2014

Use the SSAS Server 2016 provider when connecting to the following SSAS Modes:

  • MultiDimensional instances with server versions above 2016
  • Tabular instances with server versions above 2016
  • Azure Analysis Services

4. Select On Premises or Azure, and then enter a valid server name and connection credentials for your connection.

Note:  If you have selected SSAS Server 2016 and are attempting to connect to Azure Analysis Services, Azure Active Directory credentials are required. To connect to Azure Analysis Services, you need to download and install the latest Microsoft Azure Analysis Services Client Libraries.

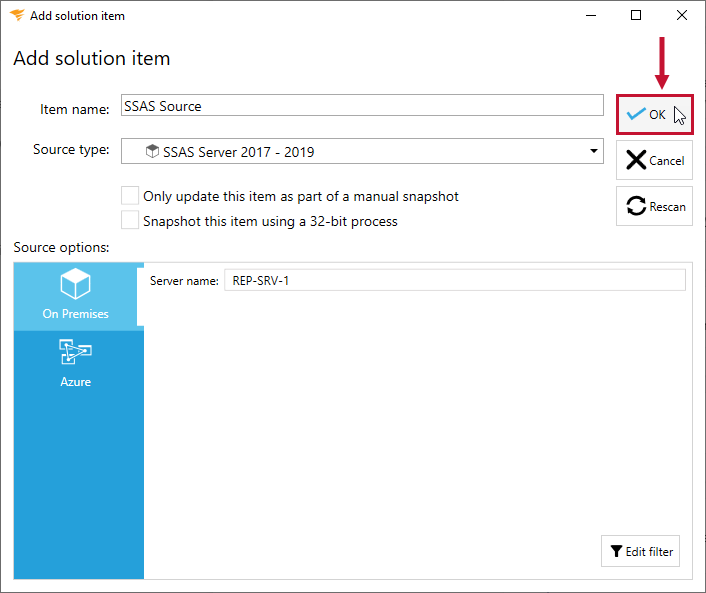

5. Select OK to add the SSAS Server Solution item to your Database Mapper Solution.
Database Mapper Add Solution Item SSAS select Ok

SSAS Solution Item Sample Documentation

Additional Information: You need to take a snapshot of your Solution and SSAS Solution item before viewing any documentation or lineage. For more information about taking a snapshot, see the Generating Documentation and Scheduling a Snapshot articles.

After adding a Solution with your SSAS Solution Item, and taking a snapshot, you are ready to view your documentation.

Display documentation for your SSAS Server connections, SSAS Server Databases, and SSAS Server Data Source views.

Display documentation for more granular data, such as SSAS Server Cube Dimensions, SSAS Server Cube Calculations, and SSAS Server Cube KPIs.

Additional Information: For more information about the Documentation tab in Database Mapper, see the Documentation article.

SSAS Solution Item Sample Lineage

After adding a Solution with your SSAS Solution Item, and taking a snapshot, you are ready to view your Solution's lineage within the environment. Lineage provides some of the same options on the nodes, but displays graphs and dependency flows of the information and connections. You can adjust the granularity or apply filters.

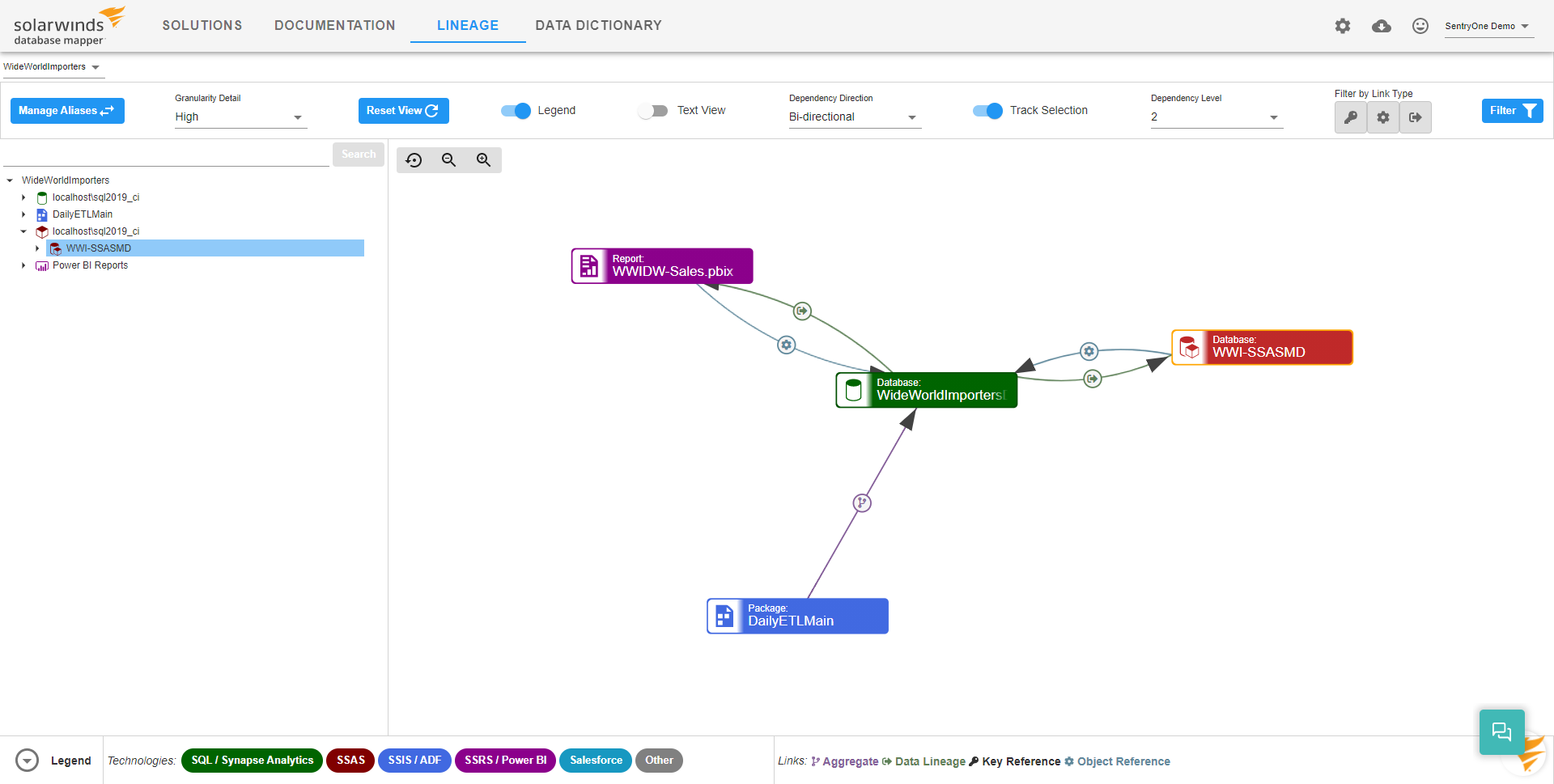

Display lineage for your SSAS Server databases and data source views.Database Mapper SSAS Server Lineage example

Display lineage for more granular data, such as SSAS Server Data Source View Table columns and SSAS Server Cube Measure Groups.

Additional Information: For more information about the Lineage tab in Database Mapper, see the Lineage article.
