If you have a node-based SAM license:
- Each node with at least one API-monitored metric counts as a managed SAM node.
- Each SAM node can host multiple API pollers that monitor at least one metric.
- The number of allowed monitored metrics matches the number of managed nodes allowed by the license. For example, with a SAM100 license, you can monitor up to 100 API metrics.
You can monitor an unlimited number of component monitors and application monitors with node-based licensing, regardless of what you're monitoring with an API poller.
For example, with a node-based SAM10 license, you can either:
- Monitor 10 values with 1 API poller on 1 node, or
- Monitor 5 values with 2 API pollers on 1 node, or
- Diversify license consumption, as follows:
- Monitor 1 value with 1 API poller on 3 nodes,
- Monitor 2 values with 1 API poller on 1 node, and
- Monitor 1 value with 5 API pollers on 1 node.
In this example, 3 + 2 +5 = 10 consumed SAM licenses.
If you have a component-based SAM license:
- The number of monitored metrics does not impact the available number of application monitors and component monitors.
- The number of allowed monitored metrics depends on how your component-based license maps to an equivalent node-based license, as detailed next. For example, you can monitor up to 50 API metrics with an AL700 license.
Component-based license tier Node-based license tier
of monitored metrics
AL150 SAM10 10 AL300 SAM25 25 AL700 SAM50 50 AL1100 SAM75 75 AL1500 SAM100 100 AL2500 SAM200 200 ALX SAM300 300 SAM400...* 400
* Additional node-based SAM license tiers are available, up to SAM5000 and beyond.
For both license types:
- The initial request to contact an API (often referred to as an "API call") is sent from the web, not a polling engine. Until you select at least one metric to monitor, no license is consumed.
- API pollers stop updating metrics in the Orion Web Console if your SAM license expires. The status of monitored metrics, as displayed in the API Poller widget, changes to Unknown.

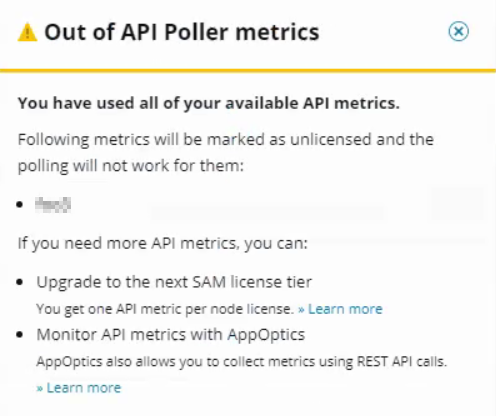

If you exceed the license limit when adding monitored metrics to a new or existing API poller, a message similar to the following appears. Any metrics above the limit are not monitored and the status appears for metrics appears as Unknown in related widgets.
Review the API licensing details in this topic and adjust monitored metrics, as necessary.
