Microsoft Azure App Service API poller template

Use this SAM API poller template to monitor Microsoft Azure App Services performance and statistic counters, including connection and request (2xx, 3xx, 4xx, 5xx) statistics for a specific Azure app.

Links and screenshots herein are attributed to © 2021 Microsoft Corp., available at docs.microsoft.com.

Prerequisites

• Use the following parameters to specify the API endpoint in the request URL:>

  • ${SUBSCRIPTION_ID}: Your Azure subscription ID. For example, 6a420fe-5200-417e-9365-997816133c3.
  • ${USERGROUP_ID}: A resource group ID
  • ${APP_NAME}: The App Service name

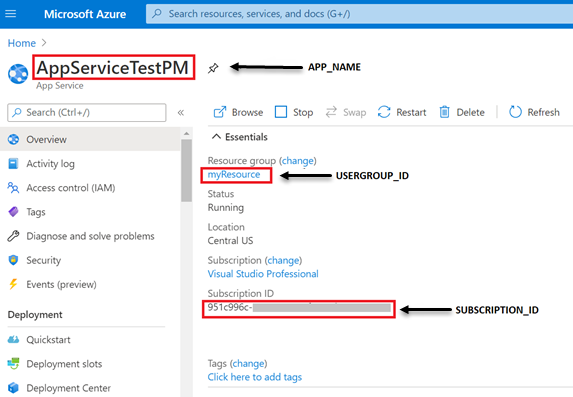

  Use the following example to help locate values in Azure:



• Configure OAuth 2.0 Azure credentials with the following values:

  • Scope: https://management.azure.com/.default
  • Access Token URL: https://login.microsoftonline.com/{TENANTID}/oauth2/v2.0/token


  Although "(optional)" appears next to the Scope field in the UI, this value is required for API pollers based on this template.


• The App Service has access control to the Application with at least the Reader role.



Notes

• Default thresholds are not set for this template.
• For reference, see Supported metrics with Azure Monitor (© 2021 Microsoft Corp., available at docs.microsoft.com).
• Here is an API request example:
  https://management.azure.com/subscriptions/${SUBSCRIPTION_ID}/resourceGroups/${USERGROUP_ID}/providers/Microsoft.Web/sites/${APP_NAME}/providers/microsoft.insights/metrics?interval=PT1H&metricnames=BytesSent,Http2xx,Http3xx,Http401,Http403,Http404,Http406,Http4xx,Http5xx,Requests,BytesReceived,AverageMemoryWorkingSet,AverageResponseTime&aggregation=Average,Total&api-version=2018-01-01

Available metrics

Average number of bytes sent

The average number of bytes sent for the given app.

Unit: Bytes

Total number of 2xx requests

The number of requests resulting in an HTTP status code >= 200 but < 300 for the app.

Unit: Count

Total number of 3xx requests

The number of requests resulting in an HTTP status code >= 300 but < 400 for the app.

Unit: Count

Total number of 401 requests

The number of requests resulting in HTTP 401 status code for the app.

Unit: Count

Total number of 403 requests

The number of requests resulting in HTTP 403 status code for the app.

Unit: Count

Total number of 404 requests

The number of requests resulting in HTTP 404 status code for the app.

Unit: Count

Total number of 406 requests

The number of requests resulting in HTTP 406 status code for the app.

Unit: Count

Total number of 4xx requests

The number of requests resulting in an HTTP status code >= 400 but < 500 for the app.

Unit: Count

Total number of 5xx requests

The number of requests resulting in an HTTP status code >= 500 but < 600 for the app.

Unit: Count

Total number of requests served by the app

The number of all requests, regardless of the resulting HTTP status code for the app.

Unit: Count

Average number of bytes received

The average number of bytes received for the app.

Unit: Bytes

Average memory used

The average amount of memory, in MiBs, used by the app.

Unit: MiBs

Average response time

The average time taken for the app to serve requests in milliseconds (ms).

Unit: ms
