Documentation forSecurity Event Manager

Create a connector profile from an agent

Create a new connector profile with preconfigured connectors from a selected agent.

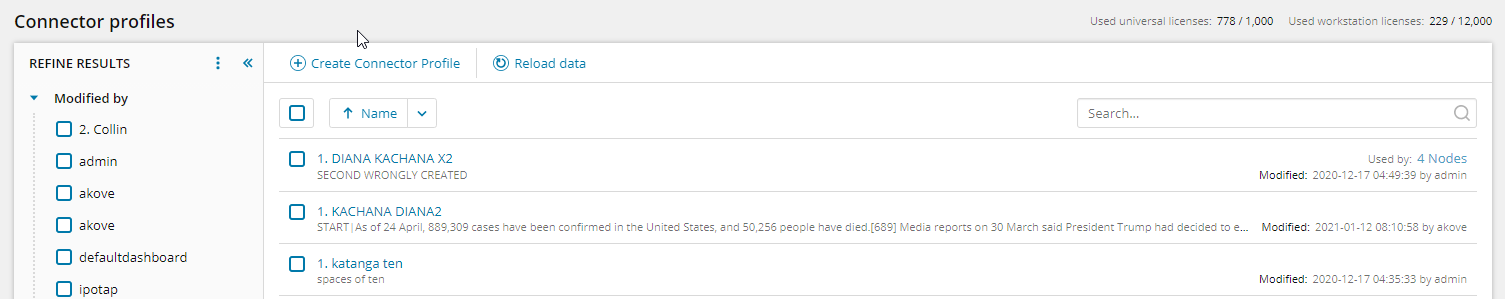

  1. In the SEM Events Console, navigate to Nodes > Connector Profiles.

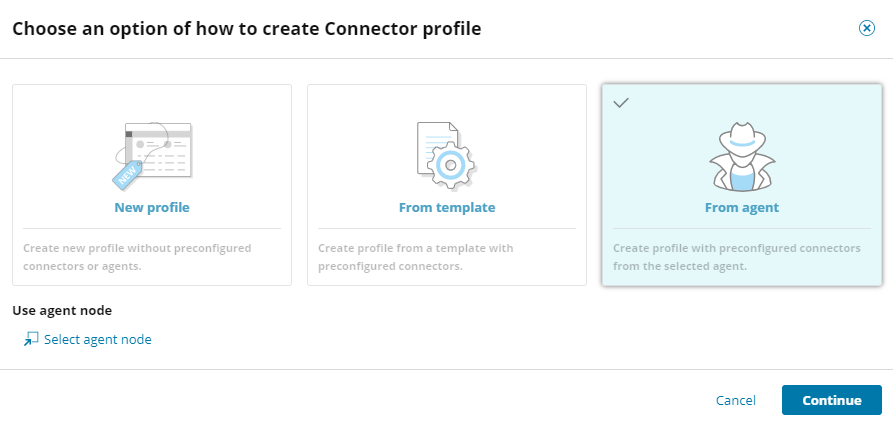

  2. On the Connector Profile toolbar, click Create, and then select From agent.

  3. Click select agent node, to view a list of available agents.
  4. Choose an agent node from the list, click Select, and then click Continue.

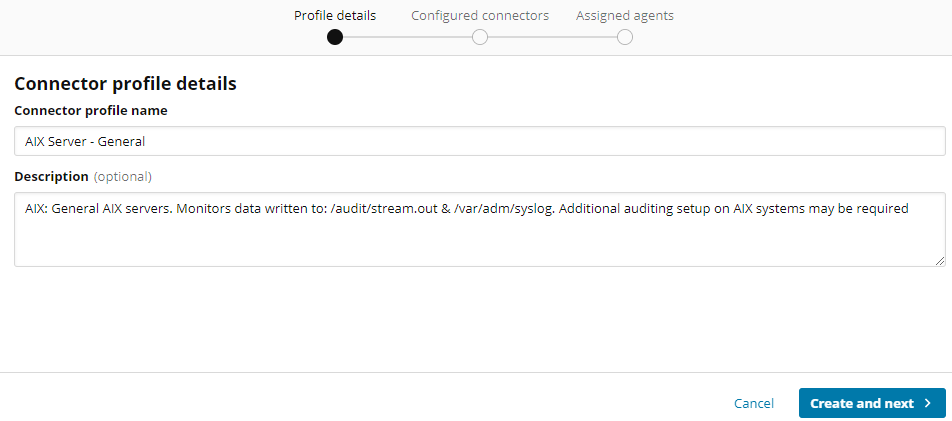

  5. Enter a name for the profile and a description (optional), and then click Create and Next.

    Connectors that were already configured for this agent node will appear in the connector list

  6. Under Configured connectors, click Add connector.

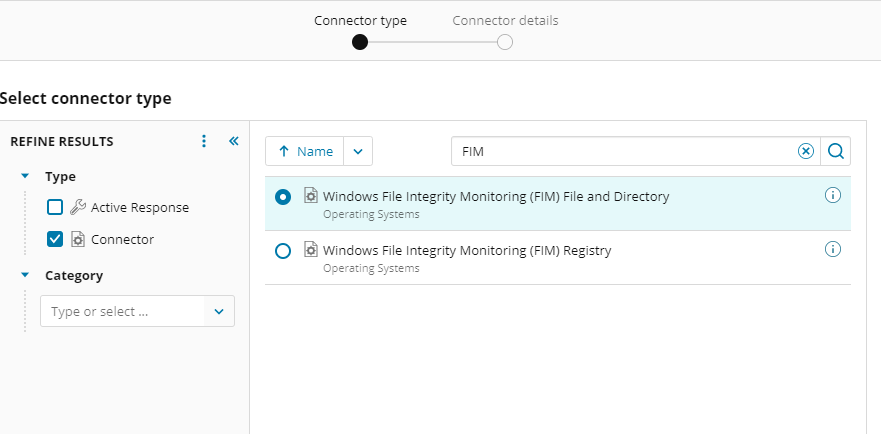

  7. Under Refine Results, expand the Type group, and then select Connector or Active Response.
  8. Find the connector to configure. Type part of the connector name in the search box, or use the filter menus in the Refine Results pane.

  9. Complete the connector configuration form. The following fields are common across most connectors:
    • Name: Enter a user-friendly label for your connectors.
    • Log File: Enter the location of the log file that the connector will normalize. This is a location on either the local computer (Agents), or the SEM appliance (non-Agent devices).
    • Output: Normalized, Raw + Normalized, Raw. You only need to configure these values if SEM is configured to save raw (unnormalized) log messages.
  10. Click Add.
  11. Continue to add more connectors to the profile as needed, and then click Next.
  12. Click Assign agents.

    An agent can only be a member of one connector profile. Learn more about connector profiles here.

  13. To complete the connector profile configuration, click Finish.
