Documentation forNetFlow Traffic Analyzer
Analyzing network traffic and bandwidth is a key capability of Hybrid Cloud Observability Advanced and is also available in a standalone module, NetFlow Traffic Analyzer (NTA). Hybrid Cloud Observability Advanced and NTA are built on the self-hosted SolarWinds Platform.

Monitor bandwidth utilization using Flow Navigator filters

Use the Flow Navigator application to filter your SolarWinds NTA views and add them directly to the Views toolbar.

While there are many ways to filter the data, this scenario assumes you have Identify consumers of interface bandwidth, and you want to create a filtered view that includes the interface, so that you can keep close track of bandwidth utilization.

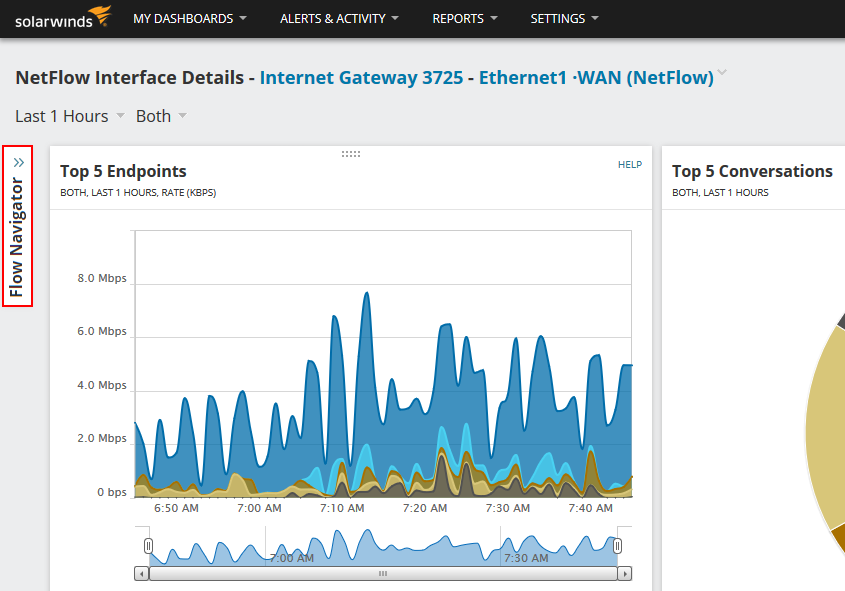

  1. From the NetFlow Interface Details page, click Flow Navigator.

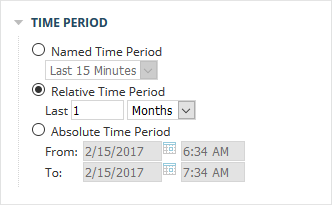

  2. In Time period, select Relative Time Period > 1 month.

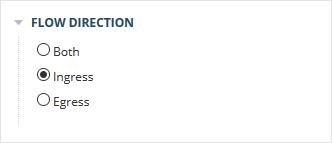

  3. In Flow Direction, select Ingress.

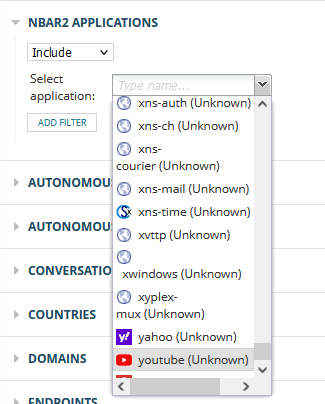

  4. In NBAR2 Applications, select youtube.

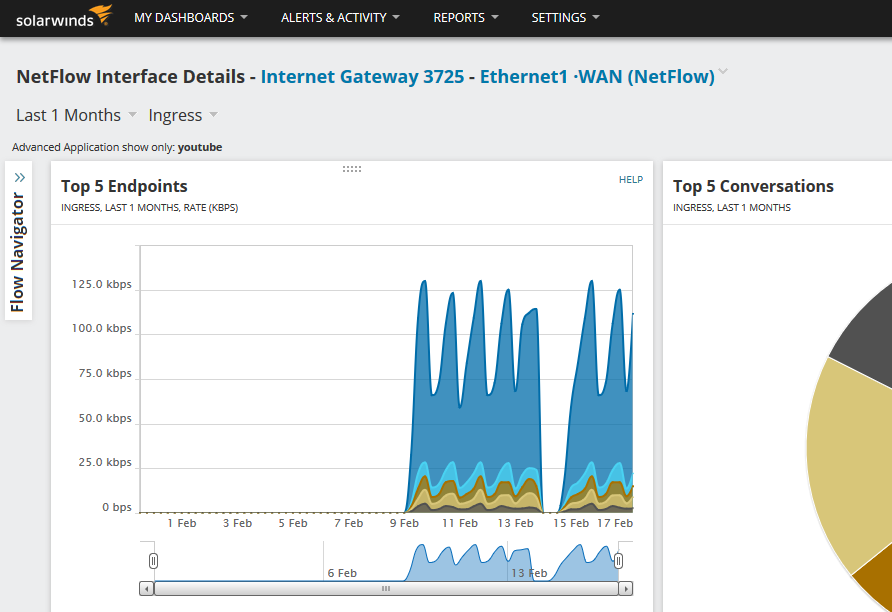

  5. Click Submit.
